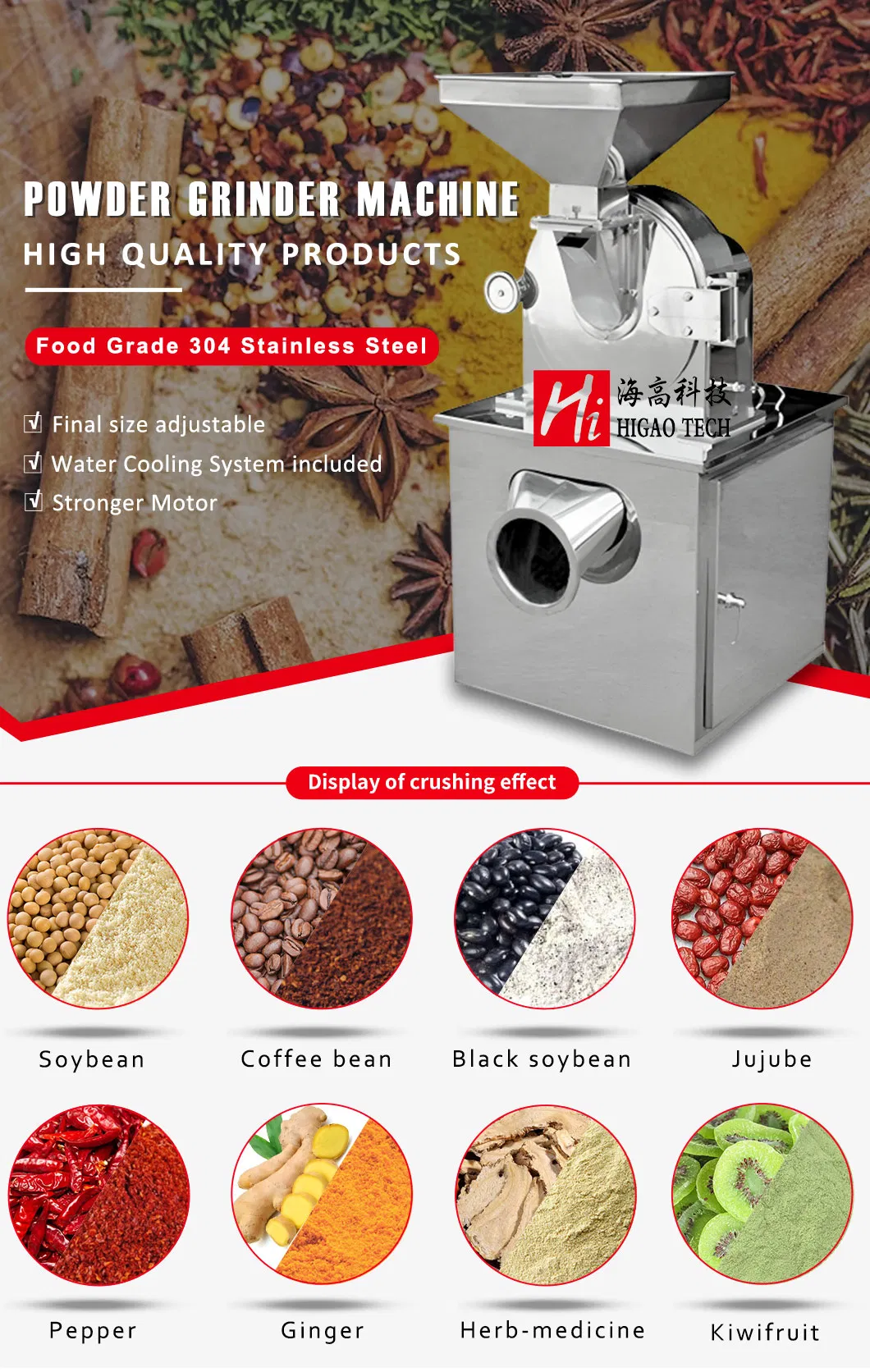

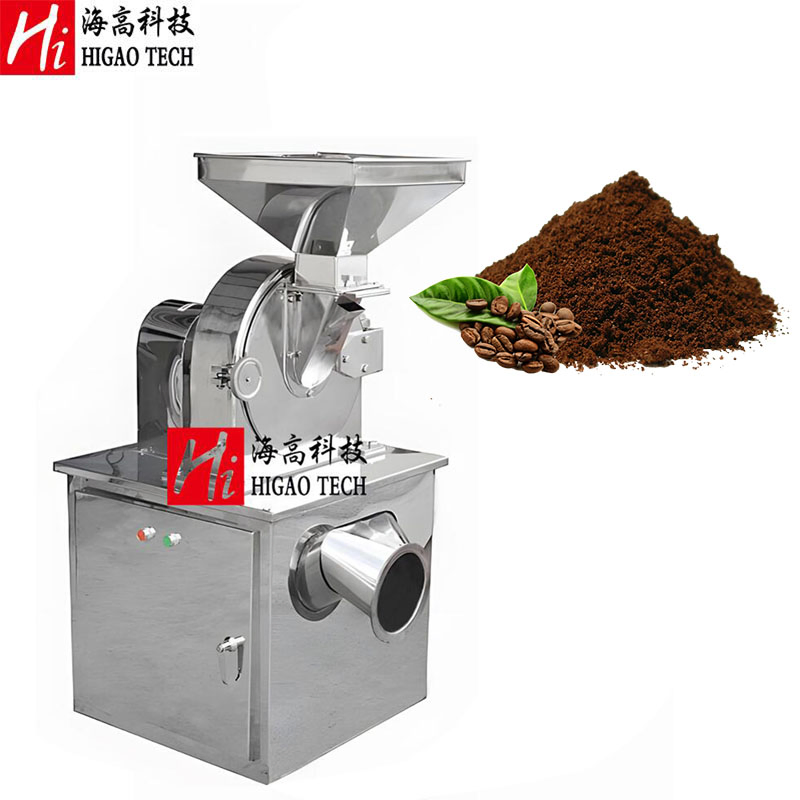

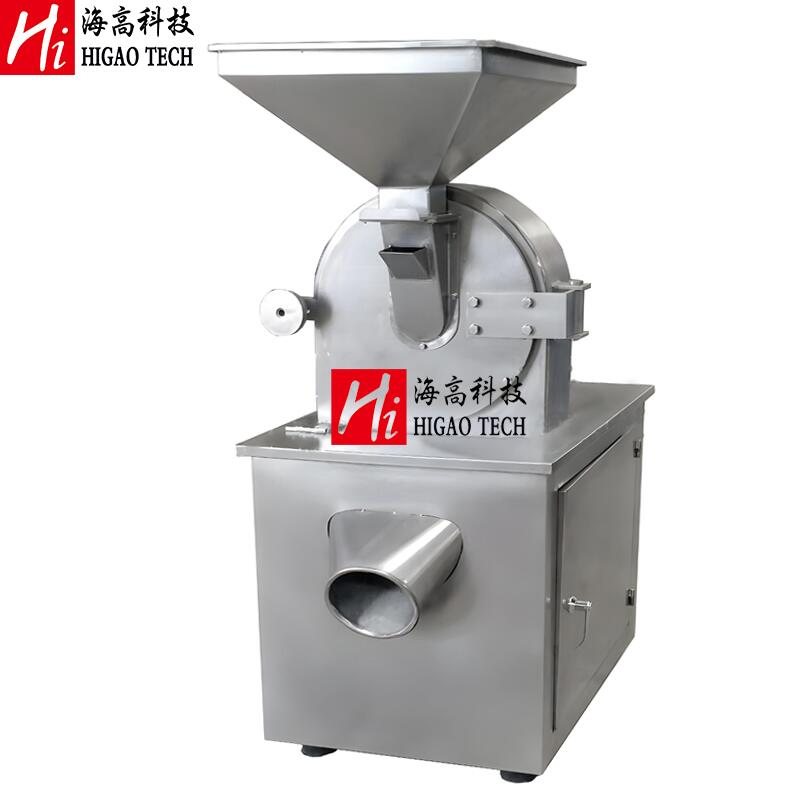

Pin Mill Pulverizer Machine is used to pulverize granules or particles with moderate hardness, less viscosity, less fiber into fine powder. It has become the universal equipment especially used in sugar, salt, beans, dehydrated fruits and vegetables pulverizing and some spice and seasonings production.

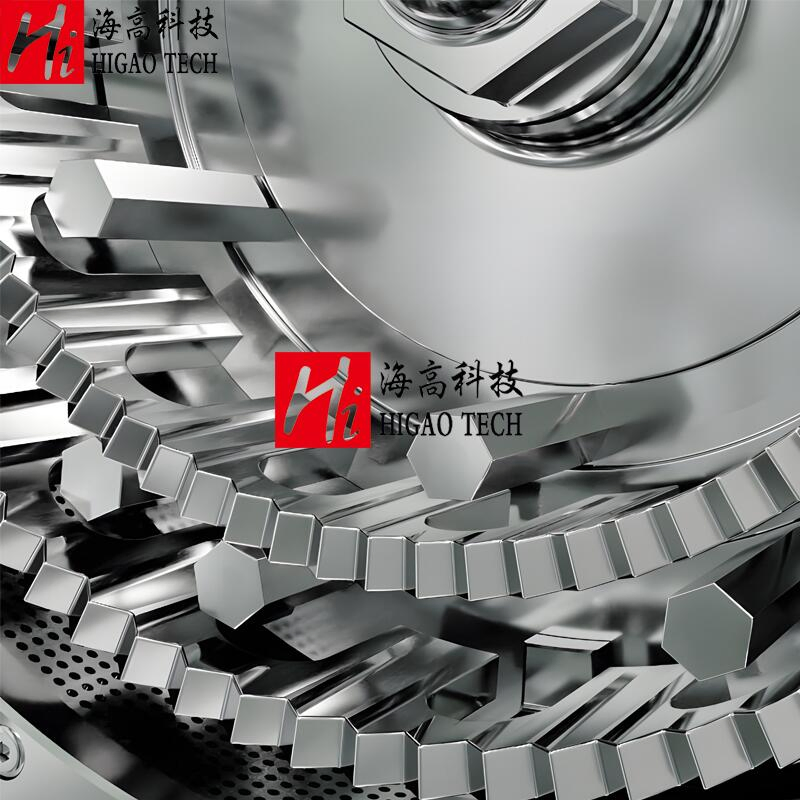

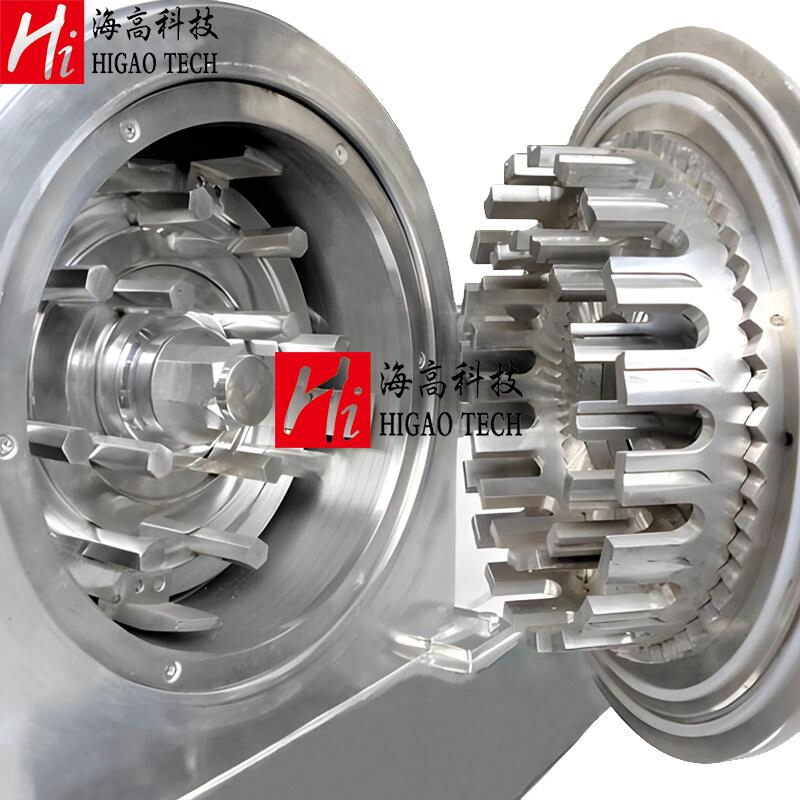

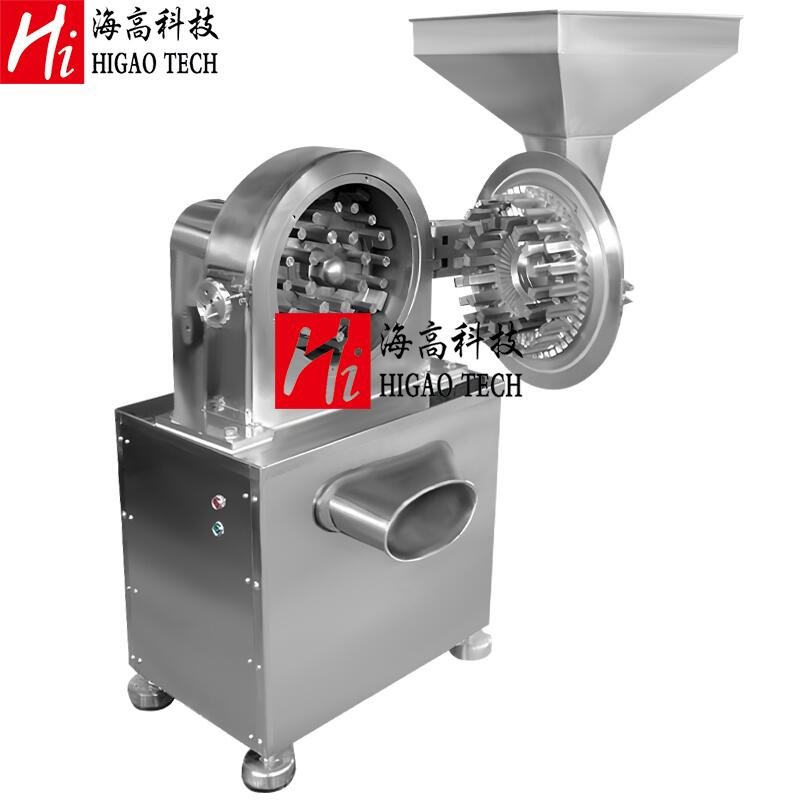

Working principle: The material is crushed by impact and friction of the teeth or pin between movable and fixed disks under the relative motion. Use a cloth bag to collect the final product at the discharging port.

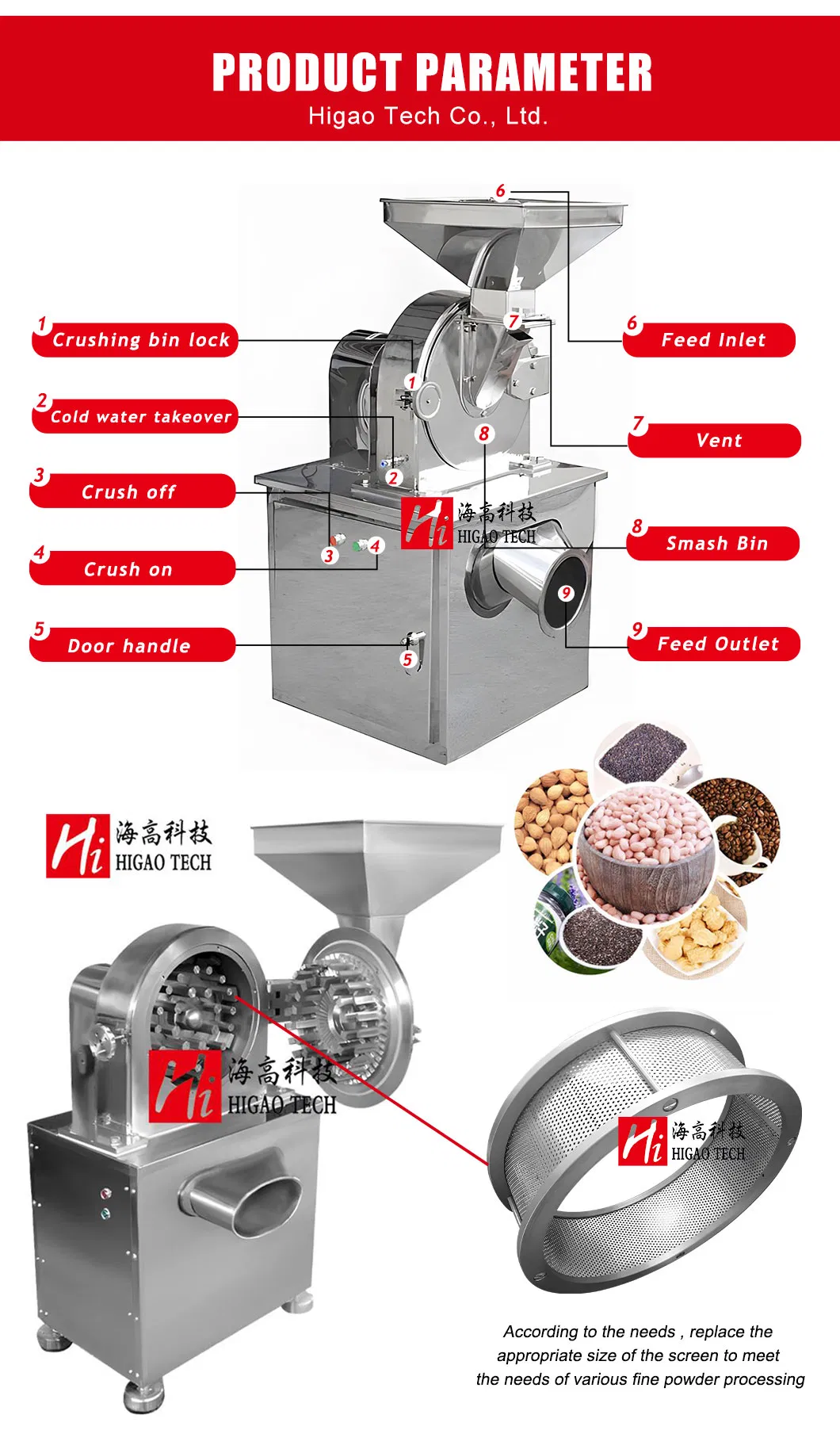

| Model | Capacity | Inlet size | Output size | Motor/Speed | Dimension(L×W×H) | Weight |
|---|---|---|---|---|---|---|
| PMA-15 | 10~50kg/h | <6mm | 20~120mesh | 2.2kw/6000rpm | 550×400×850mm | 100kg |
| PMA-20 | 60~150kg/h | <6mm | 20~120mesh | 4kw/4500rpm | 550×600×1250mm | 200kg |
| PMA-30 | 100~300kg/h | <6mm | 20~120mesh | 5.5kw/3800rpm | 600×700×1450mm | 300kg |
| PMA-40 | 300~1000kg/h | <10mm | 20~120mesh | 11kw/3400rpm | 800×900×1550mm | 500kg |
| PMA-60 | 500~2000kg/h | <12mm | 20~120mesh | 18.5kw/2800rpm | 900×900×1850mm | 700kg |
| PMA-80 | 800~3000kg/h | <12mm | 20~120mesh | 37kw/2000rpm | 1100×950×1900mm | 1000kg |
Main Features:
We provide professional grinding pulverizer machines, powder mixing machines, vibrating screening machines, granulating machines, drying equipment, conveying equipment, puffed snack food production line, food snacks processing equipment, scrap rubber tire recycle equipment, waste tire recycling rubber powder production plant, and various customized turnkey systems for pharmaceutical, chemical, and food industries.
