Sunyi Automatic Coffee Capsule Filling Packaging Machinery Cheap Price for Sale
Sunyi Automatic Coffee Capsule Filling Packaging Machinery Cheap Price for Sale
Sunyi Automatic Coffee Capsule Filling Packaging Machinery Cheap Price for Sale
Sunyi Automatic Coffee Capsule Filling Packaging Machinery Cheap Price for Sale
Sunyi Automatic Coffee Capsule Filling Packaging Machinery Cheap Price for Sale
1 / 5
Sunyi Automatic Coffee Capsule Filling Packaging Machinery Cheap Price for Sale
Sunyi Automatic Coffee Capsule Filling Packaging Machinery Cheap Price for Sale
Sunyi Automatic Coffee Capsule Filling Packaging Machinery Cheap Price for Sale
Sunyi Automatic Coffee Capsule Filling Packaging Machinery Cheap Price for Sale
Sunyi Automatic Coffee Capsule Filling Packaging Machinery Cheap Price for Sale

Sunyi Automatic Coffee Capsule Filling Packaging Machinery Cheap Price for Sale

Customization: Available
Type: Vacuum Feeding Machine
Automatic Grade: Fully Automatic
Send Inquiry

Product Description

Basic Info

Model NO.
SKP-1N
Material Type
Powder
Filling Valve
Customizable
Structure
Stainless Steel/Rotary
Dosing Device
Capacity Cup
Filling Principle
Servo Motor
Product Name
Rotary Nespresso Coffee Capsule Filling Machine
Certification
CE
Speed
60-80 PCS Per Minute
Dimension
1950*1750*2200mm
Filling Range
0-20g
Container
Nespresso, K-Cup, Dolce Gusto
Apply
Coffee Powder, Tea, Milk Powder
Control
PLC
Automatic Coffee Capsule Filling Packaging Machinery

Product Description

Automatic Coffee Capsule Filling Packaging Machinery for Sale

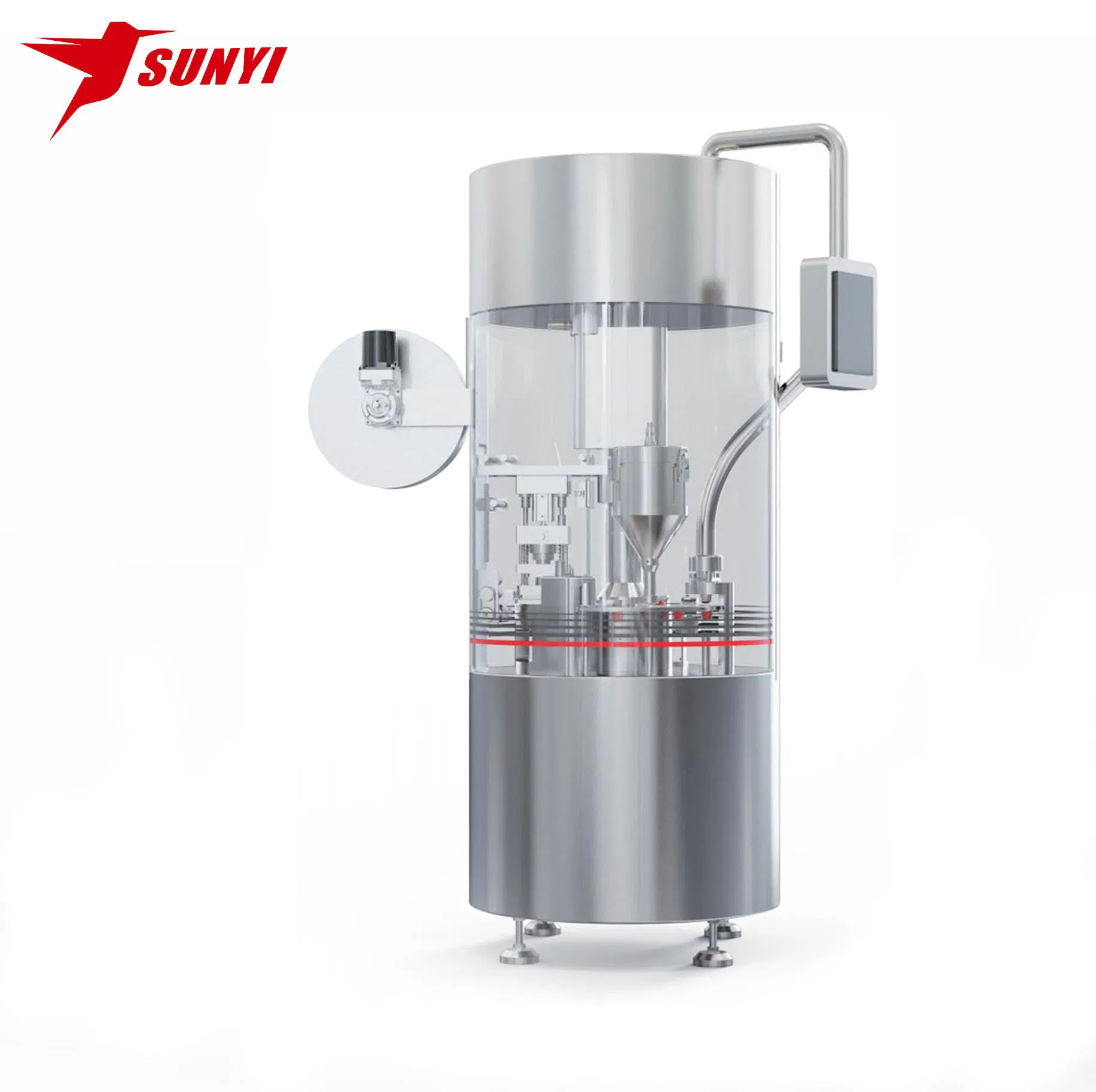

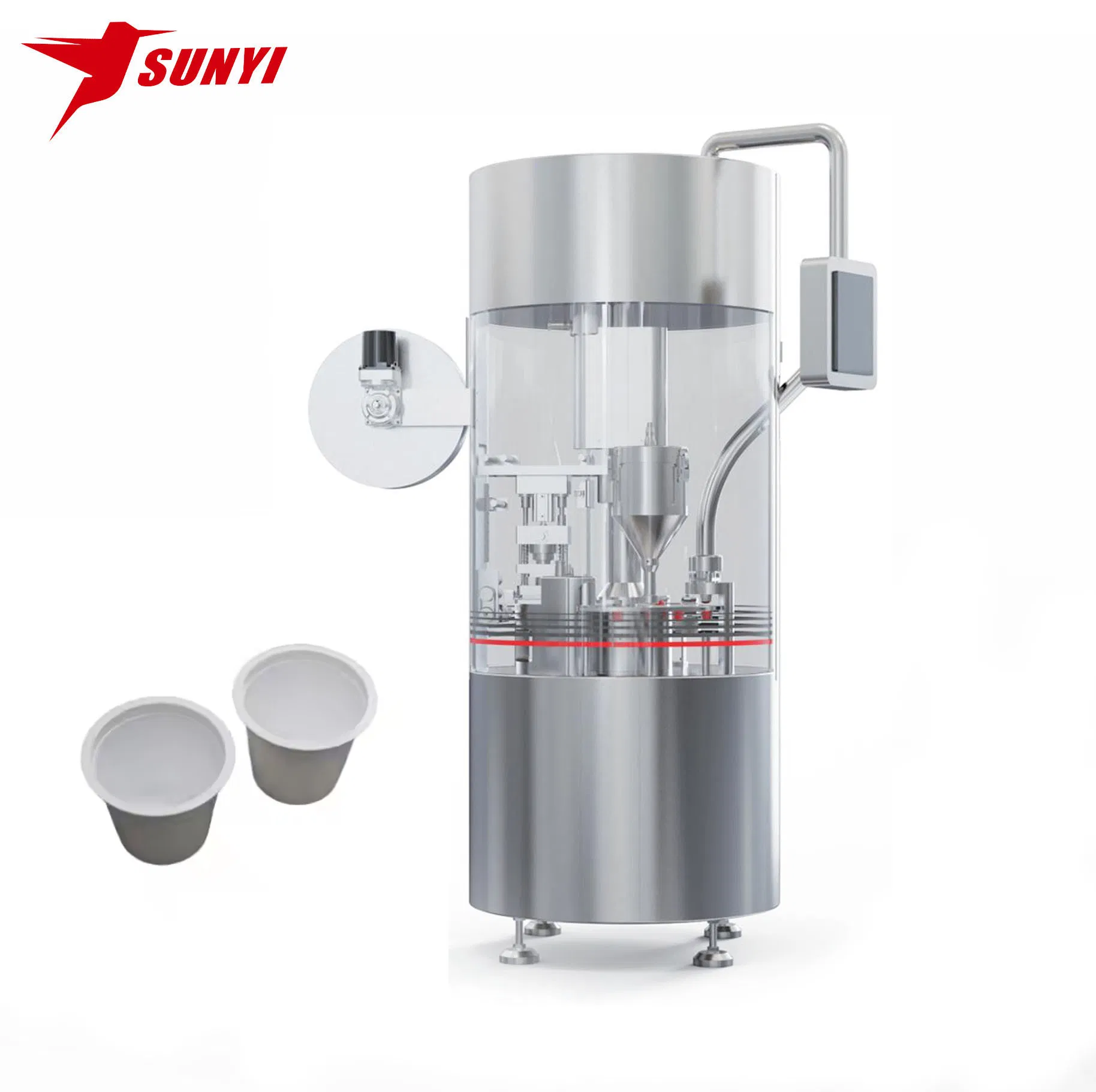

Rotary nespresso coffee capsule filling and sealing machine is based on upgrade new CP40 platform (cycle speed over 70/min). It is smaller than single lane machine with a round space design for a smaller footprint. It is ideal as an entrance model while all functions are automatic and stable.

Technical Parameters

MODELSKP-1N
Filling Range0-20g
Filling Accuracy±0.05-0.15g
Speed60-80pcs per minute
Hopper Capacity1.0L(2.5L) customized 110L
Control SystemPLC
Display7 inch Touchscreen
Power SupplyAC220V/380V 50Hz/60Hz 2.5kW
Dimension1950*1750*2200mm
Weight710kg - 760kg

Detail Functions

1. Coffee Capsule Feeding Automatic empty cups loading device, horizontal design, accommodating 500 capsules. Adopts air claw to feed capsule, stable and accurate.
2. Capsules Sensor Detects capsules; no capsules means no filling and no sealing.
3. Nitrogen Injection Station Additional Nitrogen gas flushing to increase coffee shelf life. Nitrogen protection line from loading to seal station.
4. Automatic Vacuum Material Feeding Automatically transfers powder product through pipe from floor tank to auger hopper.

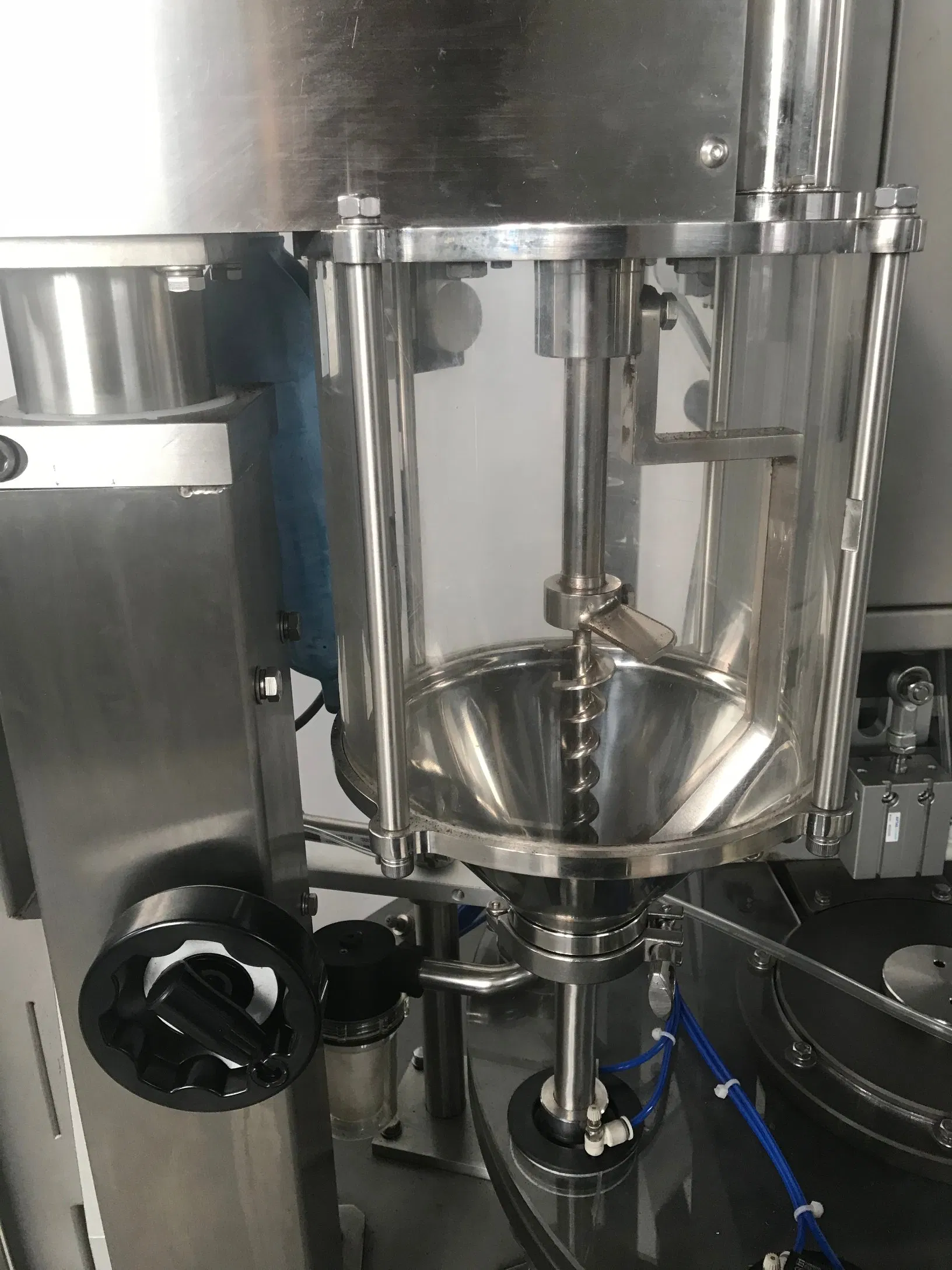

5. Filling Station High speed servo driven auger filler, controlled by PLC touch screen for weight adjustment.
6. Press Down Station Presses down powder to remove overflow for a flat surface and sucks dust from the capsule rim.
7. Foil Station Die-cutting aluminum foil lids pick and place device.
8. Heat Sealing Station Pneumatically driven heat seal device with OMRON temperature controller.
9. Cutting Film System Cuts roll aluminum film to form circle lids while sealing them onto the capsule top.

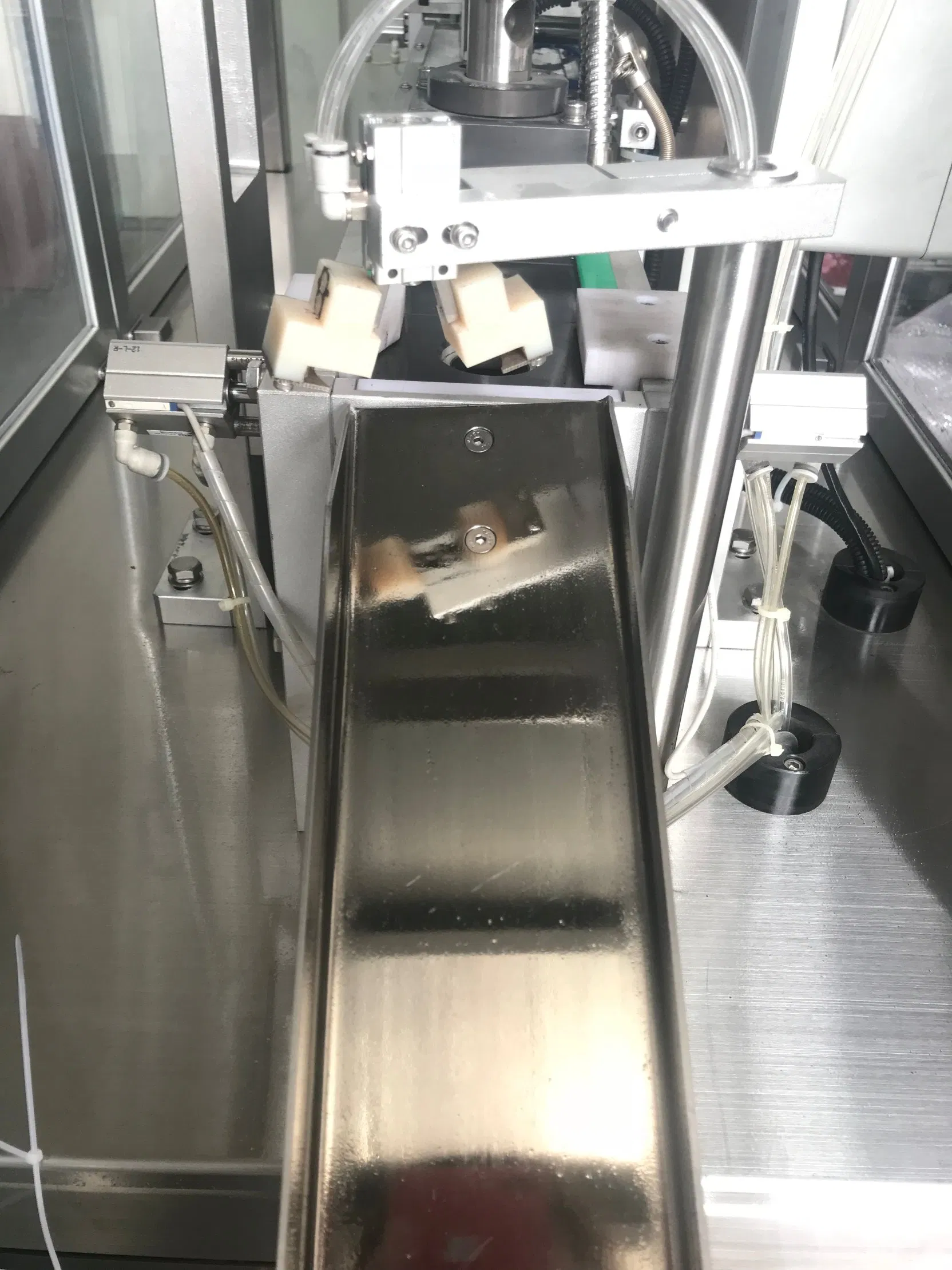

10. Discharge Station Swing manipulator outputs finished capsules to the container.

Optional Functions

Flavor Liquid Adding: Micro adding flavor liquid into capsules for different tastes.
Remote Control (FBOX): Internet connectivity for remote factory monitoring and troubleshooting.
Anti-Static Device: Removes static from fresh coffee powder to improve filling accuracy.
Feature View 1
Feature View 2
Feature View 3
Feature View 4
Capsule samples

Frequently Asked Questions

Q: What types of capsules can this machine fill? A: This machine is compatible with Nespresso, K-Cup, and Dolce Gusto capsules.
Q: What is the production speed of the SKP-1N? A: The machine can produce between 60 to 80 pieces per minute, depending on the material and capsule type.
Q: How accurate is the filling process? A: The filling accuracy is within ±0.05g to 0.15g, driven by a high-precision servo motor.
Q: Does the machine help in extending the product's shelf life? A: Yes, it includes a Nitrogen injection system that flushes the capsules with nitrogen gas to preserve freshness.
Q: Can I fill materials other than coffee? A: Yes, the machine is suitable for filling coffee powder, tea leaves, and milk powder.
Q: Is it easy to adjust the filling weight? A: Absolutely. The weight can be easily adjusted through the PLC 7-inch touchscreen interface.
