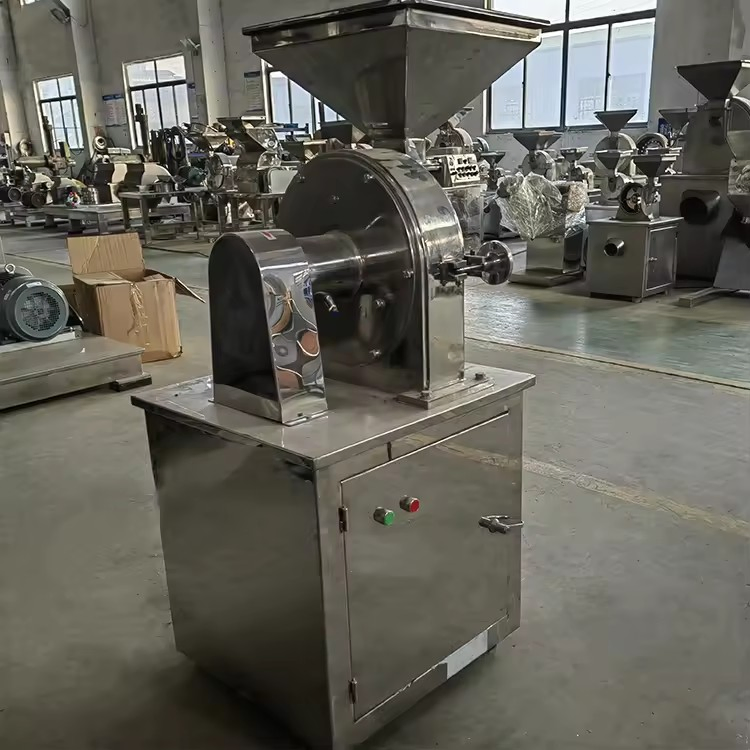

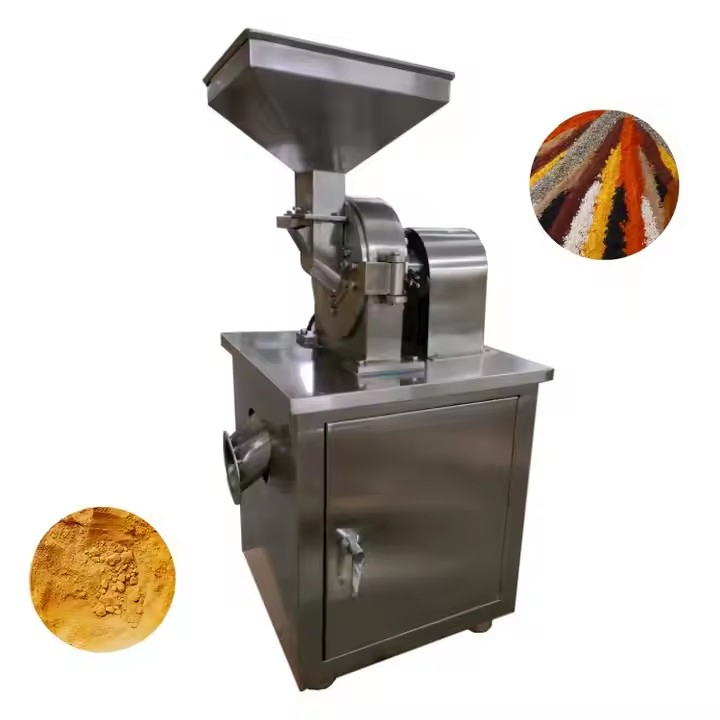

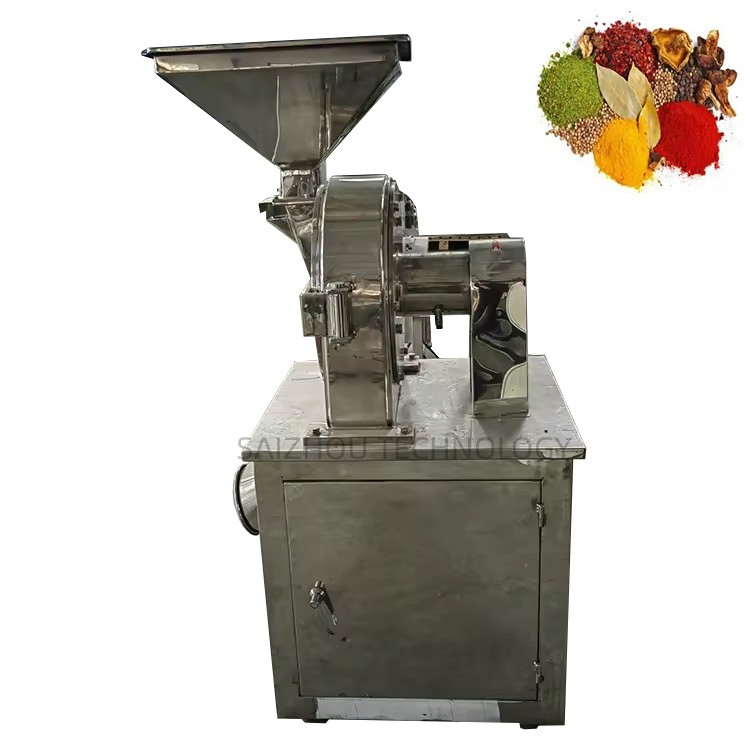

Stainless Steel Multifunction Grinder for Coffee Bean Soybean Chili

Customization: Available
After-sales Service: Online Service
Warranty: One Year Except Spare Parts

Product Description

Basic Information
Model NO.
B25
Type
Flour Mill
Application
Flour, Beans, Wheat, Medicine
Voltage
380V
Appearance
Vertical
Press Materials
Soybean
Condition
New
Package
Wooden Box
Specification
600*700*1250mm
Origin
China
Medical / Beans / Chinese Herb Grinder

Introduction

1. The machine is used to grind dry brittle materials, such as spice, seasoning, pepper, chilli, aniseed, ginger, garlic, coffee beans, cocoa beans, herb or medicine, tea leaves, grains, wheat, corn, rice, soybean, green beans, red beans, feed, tobacco, chemical materials, dry vegetables, dry fruits and so on, so it is also called universal grinder.

2. It is widely used in food, feed chemical, medical or pharmaceutical, refractory, non-metallic, abrasive, metallurgy, construction materials and agricultural industries.

Main Features

  • Adopt stainless steel, not easy to rust, durable and large size stainless steel hopper, easy to load and cleaning.
  • Proper for most materials, the crushing structures can be customized according to raw material needs.
  • Adjustable Output: Different sizes of granule or powder can be achieved by exchanging screens with different meshes.
  • Smooth inner wall design prevents powder accumulation and overcomes shortcomings of older models.
Technical Specifications
Model 18B 20B 30B 40B 60B
Capacity(kg/h) 5-60 60-150 160-300 400-800 800-1500
Main axle speed(r/min) 4500 4500 3400 2800 2200
Feeding size(mm) 6 10 12 15 15
Crush size(mm) 10-120 10-120 10-120 10-120 10-120
Power(kw) 2.2 4 5.5 7.5 15
Weight(kg) 250 320 450 600 800
Overall dimension(mm) 550*600*1000 600*700*1250 800*900*1680 1000*900*1680 1250*1100*2280

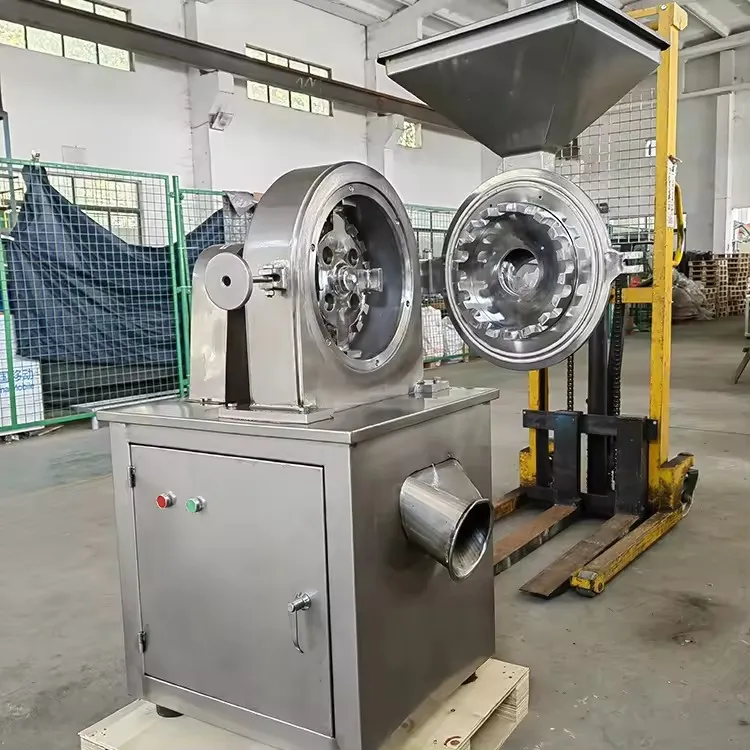

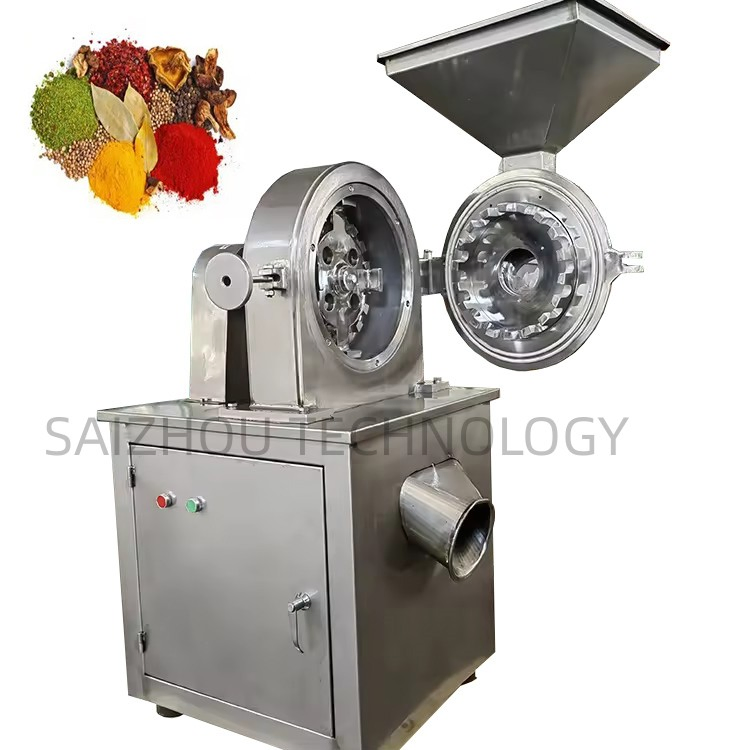

The hammer-type crushing is common, other type crush structures can be customized.

Product Display
Frequently Asked Questions
What types of materials can this grinder process?
It is designed for dry brittle materials including spices, herbs, coffee beans, grains (wheat, rice, corn), and various chemical or medical materials.
Is the machine made of food-safe material?
Yes, the machine adopts high-quality stainless steel, which is durable, easy to clean, and resistant to rust, making it suitable for food and medical industries.
How can I adjust the fineness of the finished powder?
You can get different sizes of granules or powder simply by exchanging the internal screens with different mesh sizes.
Can the crushing structure be customized for specific needs?
Yes, while hammer-type crushing is standard, we can customize the internal crushing structures according to your raw material requirements.
What is the advantage of the smooth inner wall design?
The finely processed smooth inner wall prevents powder accumulation and roughness, ensuring a more hygienic and efficient grinding process compared to old models.
What are the power and voltage requirements?
The standard model operates on 380V voltage, with power options ranging from 2.2kw up to 15kw depending on the model selected (18B to 60B).
