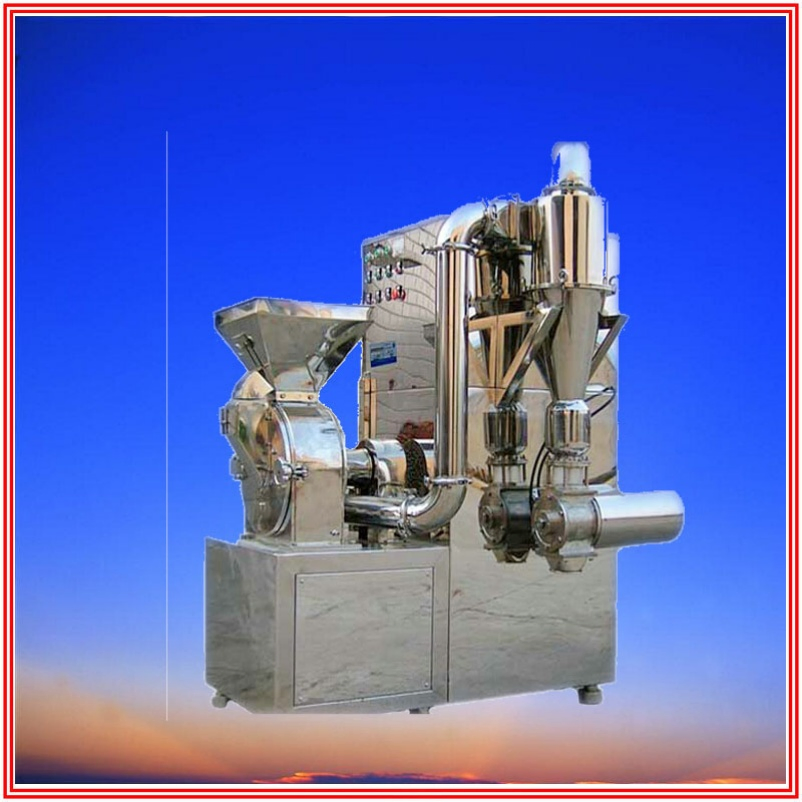

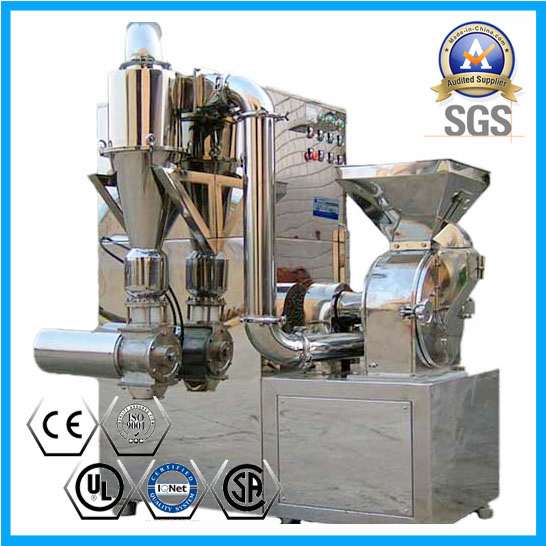

This grinder is specially designed for crushing Chinese herbal medicines containing fibers or materials with a specific oil content. It is highly suitable for the pharmaceutical, food, and chemical industries.

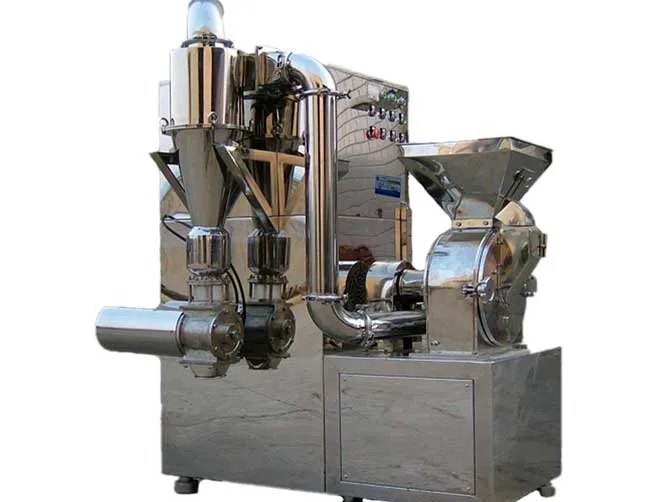

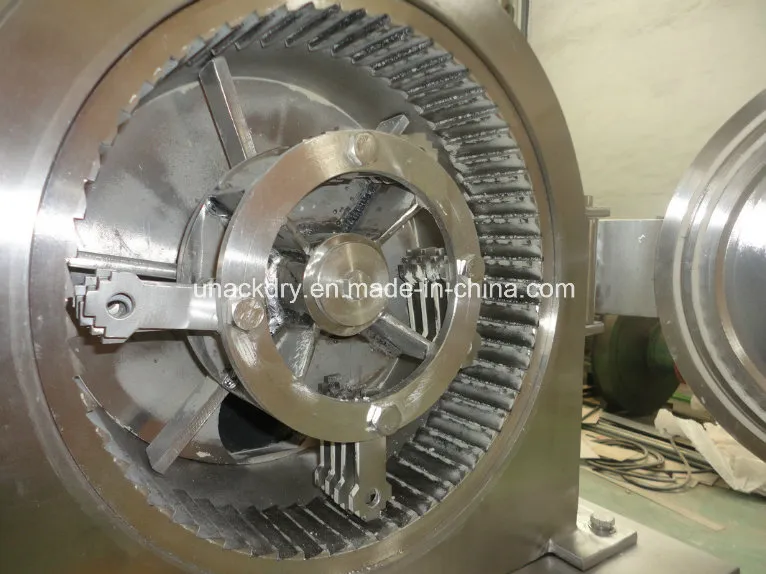

The equipment consists of a feeder hopper, classification round, smashing blade, gear ring, smashing motor, discharge hole, fan, and cleaning box. Materials are fed into the crushing room and pulverized by a high-speed blade. Fineness is controlled by adjusting the distance between the classification round and plate.
Powder that meets the size requirements is sent to the aggregate box cloth-bag, while others remain in the chamber for further grinding. Dust is collected by a specialized cleaning box. This equipment follows GMP standards and features a simple structure, easy cleaning, low noise, and high production efficiency using quality stainless steel.
| Type | 200 | 300 | 400 |
|---|---|---|---|
| Production capacity (kg/h) | 10-110 | 30-200 | 50-300 |
| Feeding granularity (mm) | 5 | 12 | 15 |
| Smash fineness (mesh) | 60-320 | 60-320 | 60-320 |
| Smash motor (kw) | 5.5 | 7.5 | 1.5 |
| Outline dimension (mm) | 1000×800×1600 | 1200×850×1780 | 1500×900×1950 |
| Weight (kg) | 320 | 650 | 800 |
