High-Speed Aluminum Coffee Capsule Packaging Machine for Efficient Production

Customization:	Available
Type:	Coffee Capsule Filling and Sealing Machine
Automatic Grade:	Fully Automatic

Send Inquiry

Product Description

Basic Information

Model NO.

SKP-2

Material Type

Powder

Filling Valve Head

Multi-Head

Feed Cylinder Structure

Multi-Room Feeding

Dosing Device

Capacity Cup

Filling Principle

Vacuum

Structure

Linear

Packaging

Capsule

Packaging Material

Aluminum Foil

Material

Stainless Steel

Capacity

80-100 Cups Per Minute

Filling Range

0-20g

Application

Biodegradable Nespresso

Filling Material

Coffee Powder, Milk Powder

Certification

Dimension

3720*2000*2100mm

Weight

1000kg

Power

AC220V/380V 50Hz/60Hz

Control System

PLC

HS Code

8422303090

Product Description

Aluminum Coffee Capsule Packaging Machine

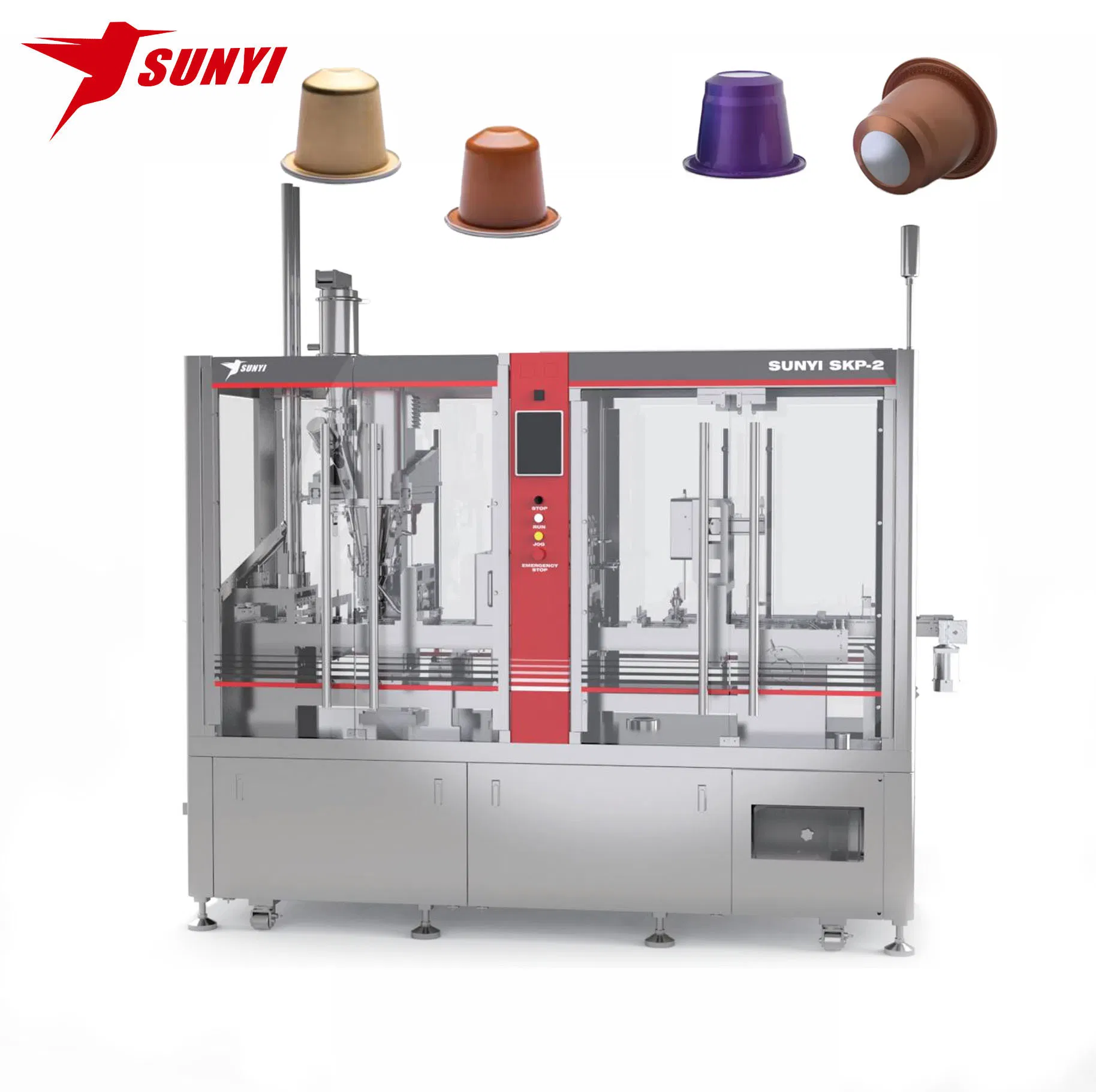

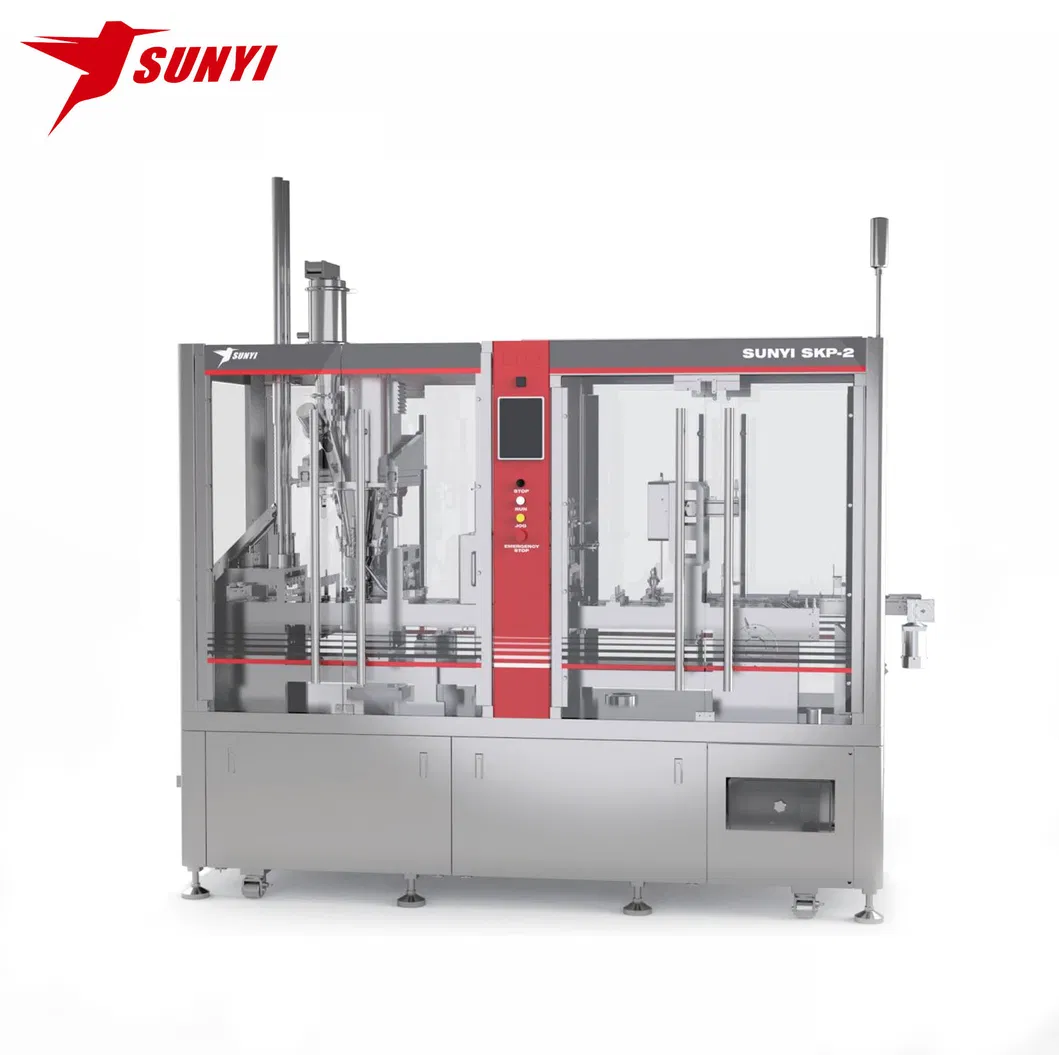

High Speed Aluminum Nespresso Coffee Capsule Packaging Machine

This middle-capacity Nespresso coffee capsule filling and sealing machine operates at 80-100 pcs per minute. It is fully compatible with Aluminum Nespresso, K-cup, Dolce Gusto, and more. Widely used for coffee powder, tea powder, chocolate powder, and milk powder. The integrated nitrogen system ensures a nitrogen level of up to 98% in the Nespresso cup, significantly extending shelf life.

We provide comprehensive coffee solutions including empty cups, foils, filters, filling and sealing machines, and packaging equipment.

Technical Parameters

Model	Filling Range	Accuracy	Speed (pcs/min)	Hopper	Control	Display	Power	Dimension (mm)	Gross Weight
SKP-2	0-20g	±0.05-0.15g	80-100	2.5L-110L	PLC (OMRON)	10 Inch	AC220v/380v	372010002100	1000kg
SKP-4	0-20g	±0.05-0.15g	160-180	2.5L-110L	PLC (OMRON)	10 Inch	AC220v/380v	372020002100	1250kg
SKP-6	0-20g	±0.05-0.15g	200-260	2.5L-110L	PLC (OMRON)	10 Inch	AC220v/380v	372024002100	1450kg

Standard Functions

Container Feeding Station: Automatic loading with air claw for stability. Horizontal or vertical design accommodating 1500 capsules. Includes "No Cup No Filling" sensor.

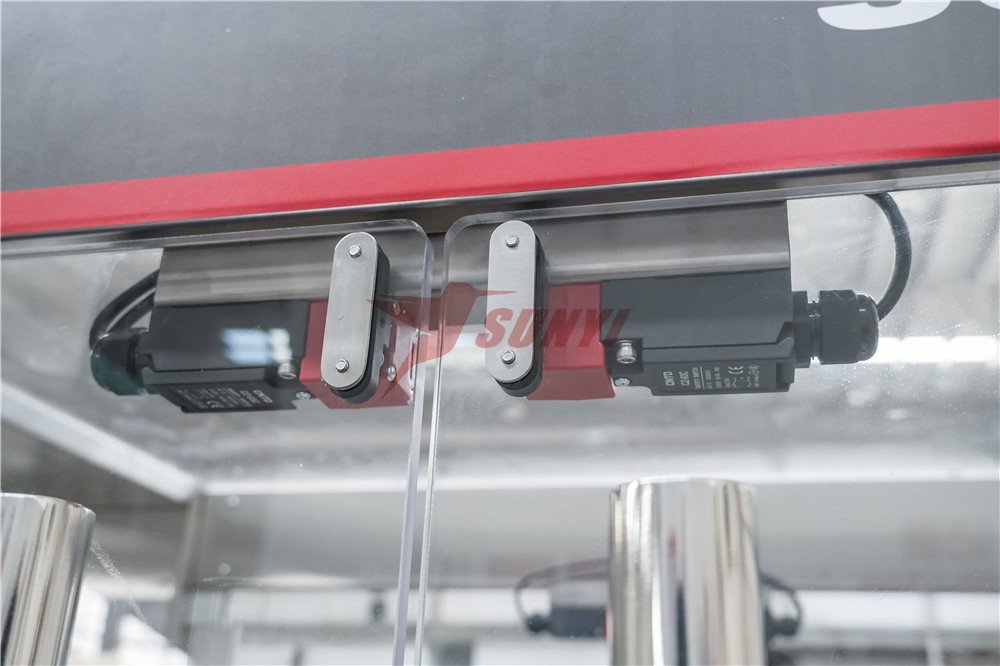

Photoelectric Sensor: High-precision detection to ensure no filling or sealing occurs if no capsule is present.

Nitrogen Injection: Nitrogen gas flush from loading to sealing, including storage hopper input, to maximize product shelf life.

Vacuum Material Feeding: Automatic powder transfer from holding floor tanks to the auger hopper via specialized piping.

Filling Station: Servo-driven auger fillers with precise loading cells controlled by PLC. Adjust weight easily via touchscreen.

Powder Pressing & Rim Cleaning: Compacting powder and cleaning the top rim of the capsule to ensure a perfect seal.

Roll Film Cutting & Sealing: Automatically punches and cuts roll film into lids and seals them onto the capsule top efficiently.

Discharge Station: Swing manipulator catches finished capsules and places them onto a 1200mm exterior conveyor.

Optional Functions

1. Capsule Overturning: 180-degree rotation for secondary packaging.

2. Counting & Sorting: Automatic sorting device at the end of the conveyor.

3. Remote Control: FBOX installation for remote failure diagnosis and assistance.

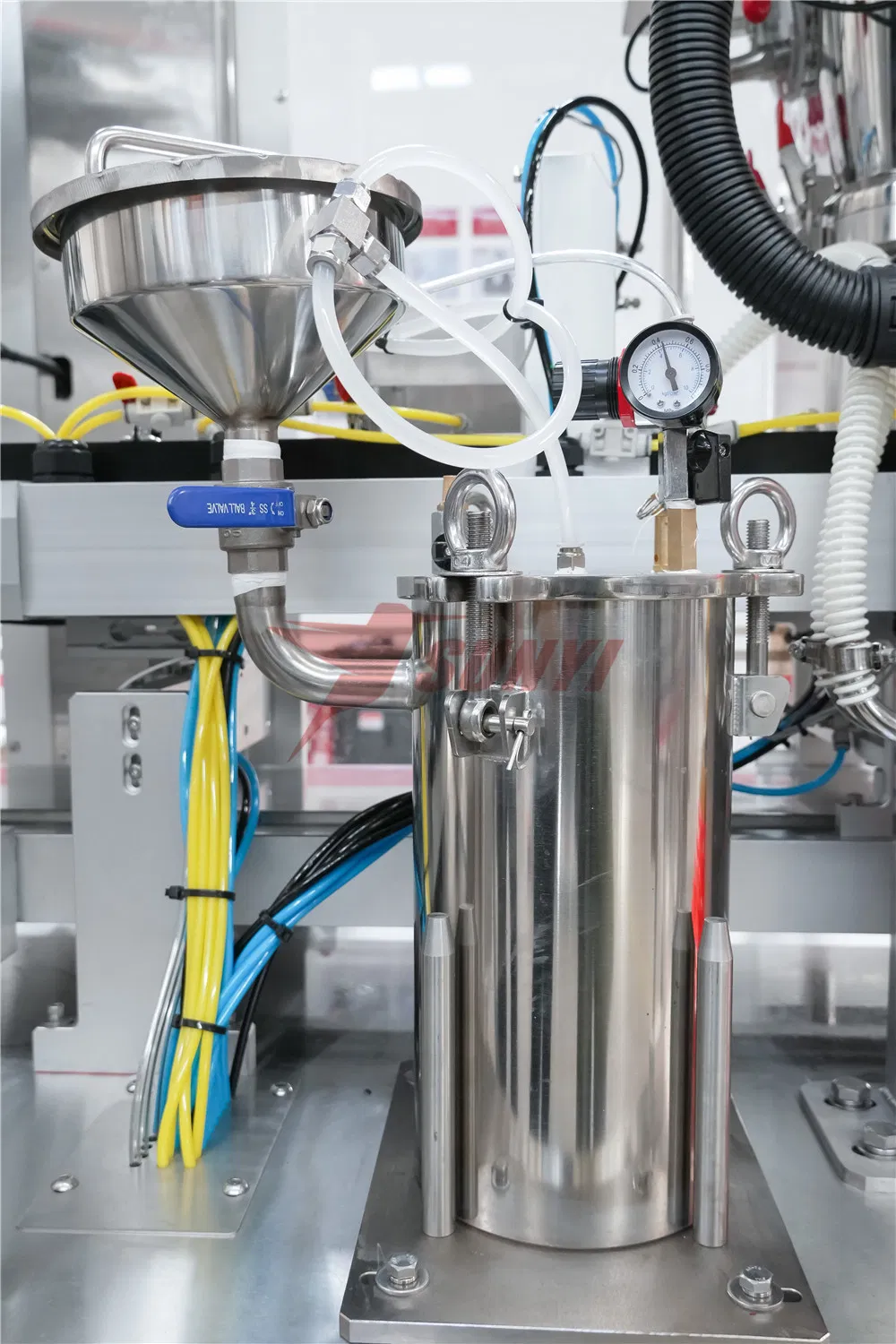

4. Liquid Flavor Injection: Adding micro-flavor liquids for varied coffee tastes.

5. Check Weigher: In-line weight feedback and rejection of non-conforming products.

6. UV Lamp: Ultraviolet sterilization to ensure food safety for empty capsules.

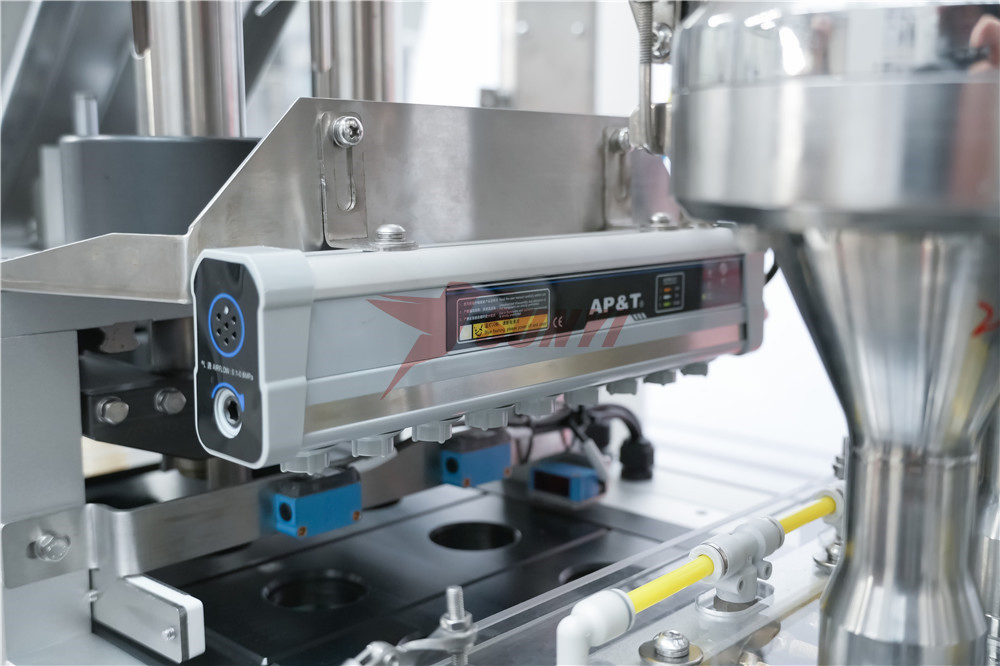

7. Anti-static Device: Eliminates static in fresh coffee powder to improve filling accuracy.

Frequently Asked Questions

What is the production capacity of the SKP-2 model?

The SKP-2 model features a production speed of 80 to 100 capsules per minute, making it ideal for medium-scale production.

What materials can this machine fill?

It is designed for various powders, including coffee powder, tea powder, chocolate powder, and milk powder.

Is the machine compatible with different capsule types?

Yes, the machine is compatible with Aluminum Nespresso, K-cups, Dolce Gusto, and other biodegradable capsule options.

How does the machine maintain the freshness of the coffee?

The machine uses a nitrogen injection system that maintains a nitrogen level of up to 98% within the capsule to prevent oxidation and extend shelf life.

What type of control system does the machine use?

The machine is equipped with a high-quality OMRON PLC control system and a 10-inch touchscreen interface for easy operation.

Can I customize the machine with additional features?

Yes, we offer several optional functions such as UV sterilization, liquid flavor injection, check weighers, and remote control assistance.
