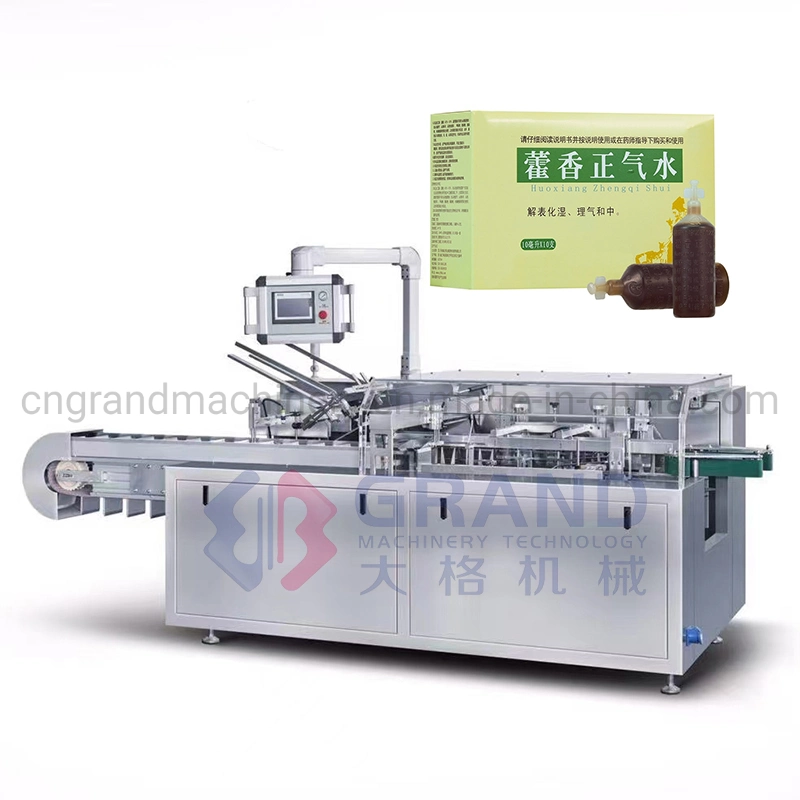

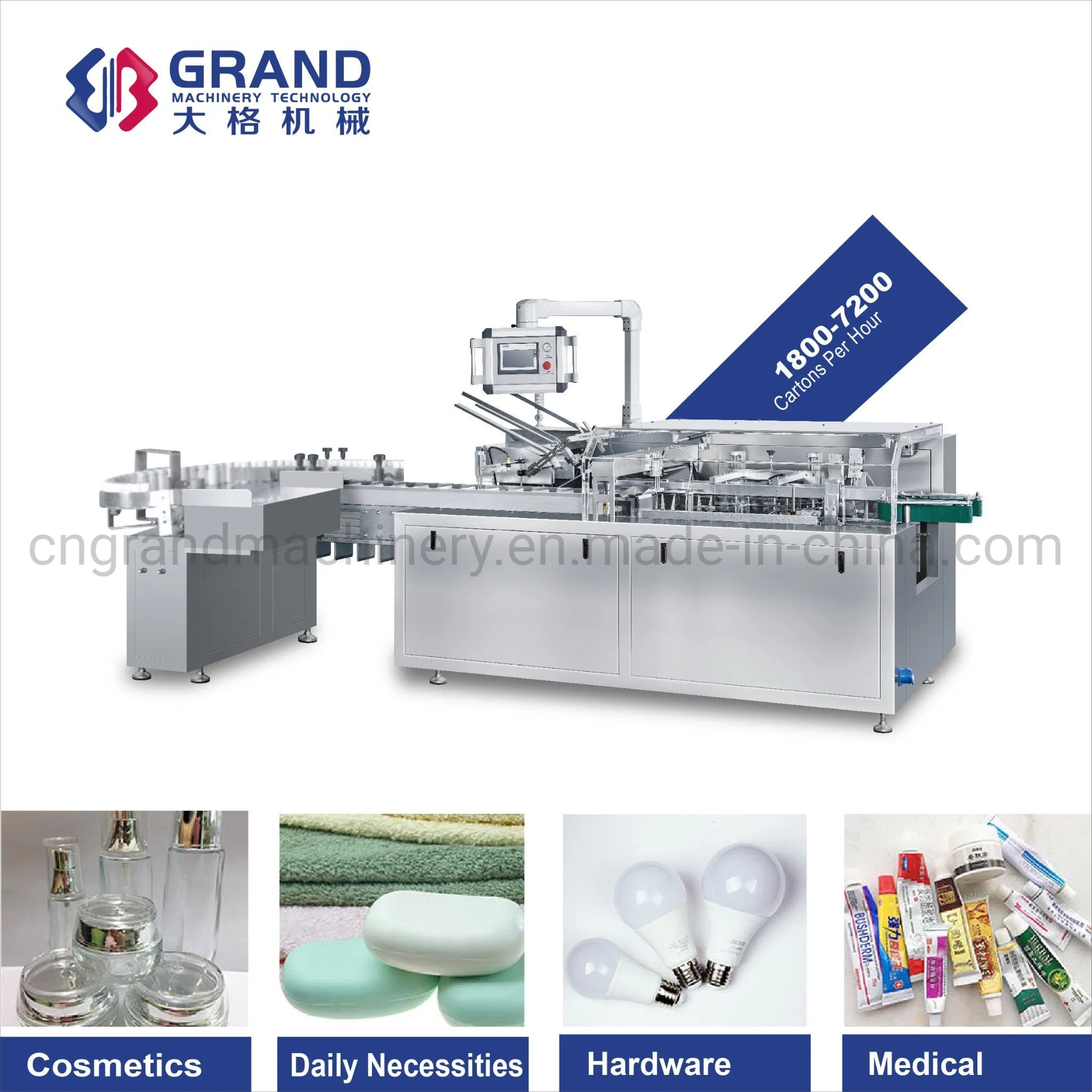

GSZ-130P Automatic Cartoning Machine
As a light, electric, pneumatic and machinery integration, GSZ-130P has improved its performance and working efficiency. The equipment can carton products quickly and keep stable and reliable even in high speed operation.
This machine is applicable in fields of foodstuff, pharmaceutical industry, daily chemicals, entertainment, cosmetic, hardware and etc.
It is widely used in cartoning items such as antigen test kits, capsules, blisters, bottles, soaps, toothpastes, tubes, and disposable face masks.

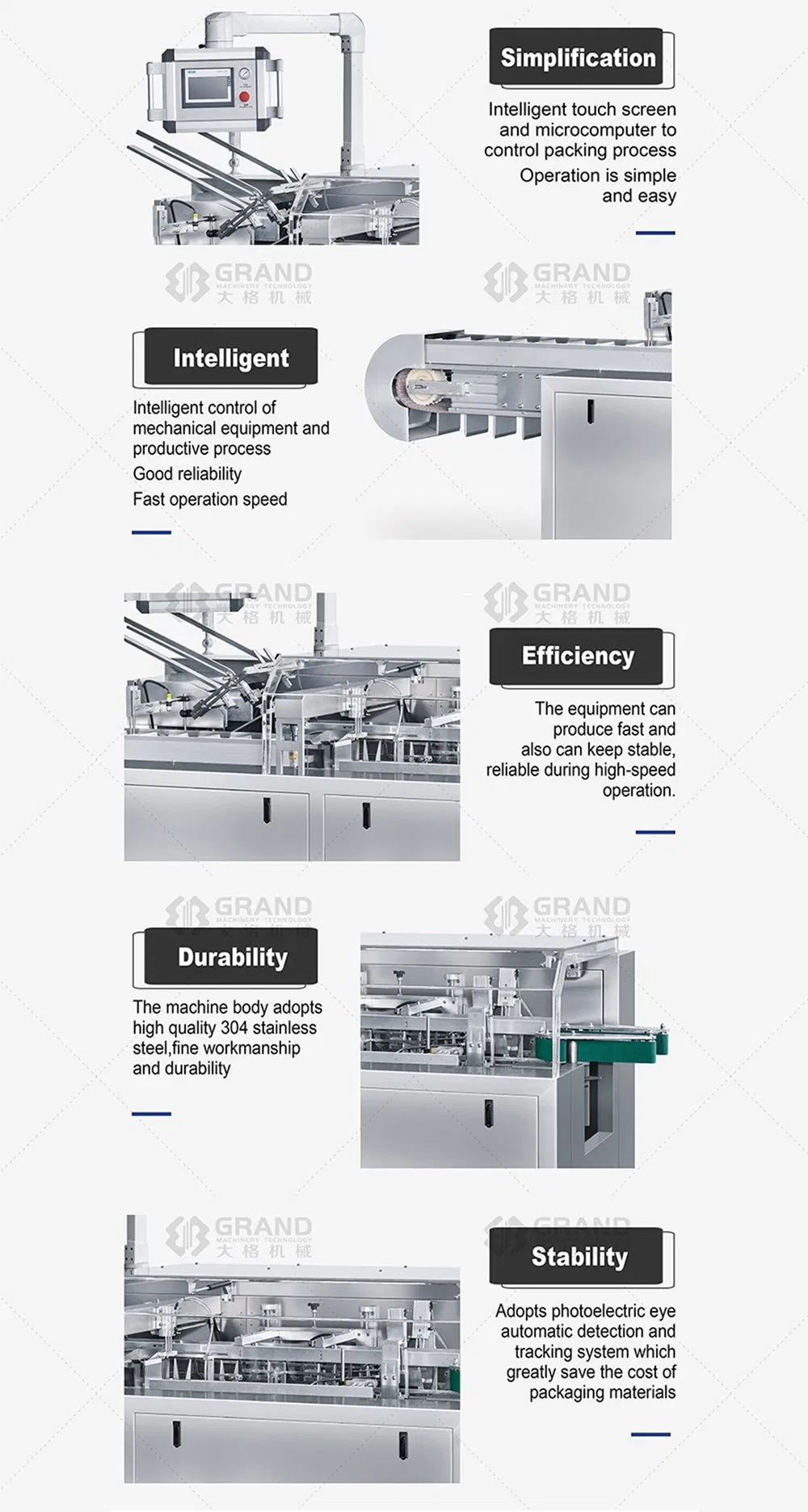

PLC control system and international brand electric components.
Advanced HMI operation system for easy control.
Automatic stop when overloaded for safety protection.
Auto-rejection for cartons without products or leaflets.
Real-time error display, alarm, and product counting.

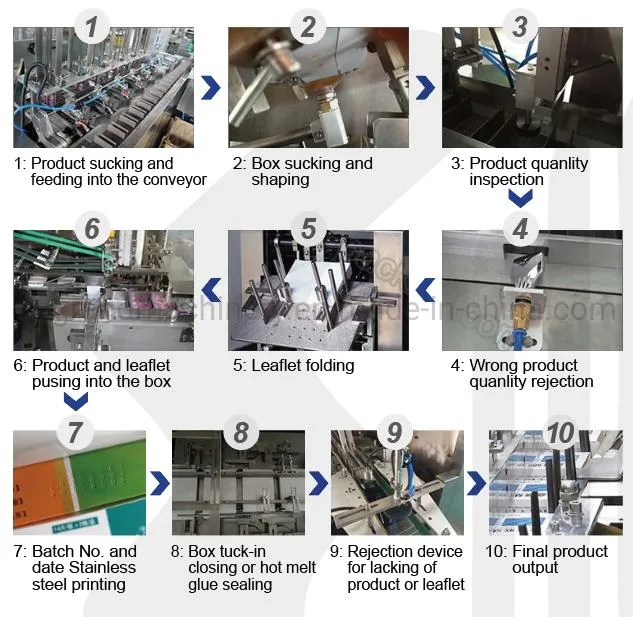

Working Process Visual Flow:
| Parameter | Specification Details |
|---|---|
| Model | GSZ-130P |
| Carton Quality | 250-350g/m² (depending on size) |

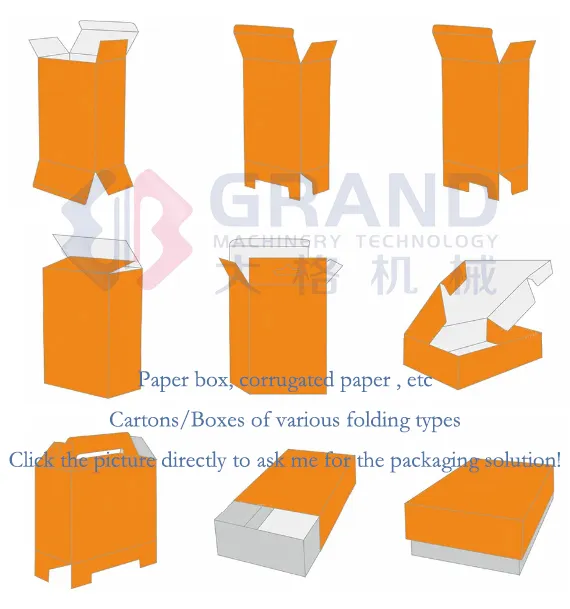

| Carton Size (L*W*H) | (70-200)mm * (35-120)mm * (14-70)mm |
| Leaflet Quality | 60-70g/m² |
| Leaflet Fold | 1-4 folds |
| Compressed Air Pressure | ≥0.6mpa |
| Air Consumption | 120-160L/min |
| Power Supply | 380V, 50HZ |
| Main Motor Power | 1.5KW |
| Machine Dimensions | 4100mm * 1100mm * 1550mm |
| Machine Weight | About 1400KG |
✔ Direct Factory: Flexible customization to meet specific customer requirements.
✔ Quality Assurance: Every machine is debugged and tested by professional inspectors before shipment.
✔ Full Support: We provide machine manuals and video operation training.

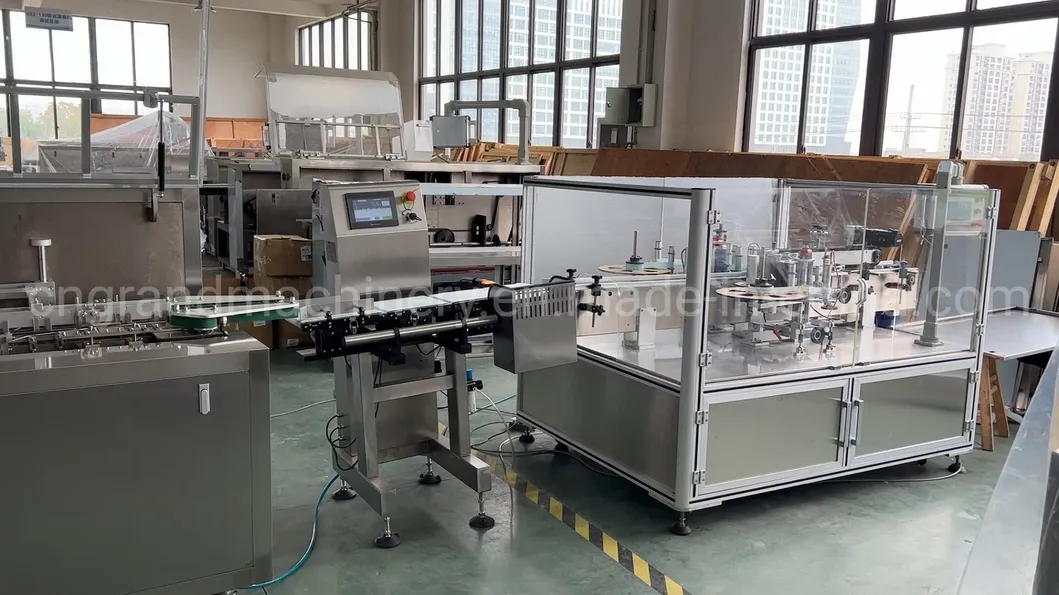

✔ Integrated Solutions: Compatible with polishing machines, counting machines, and labeling lines.
