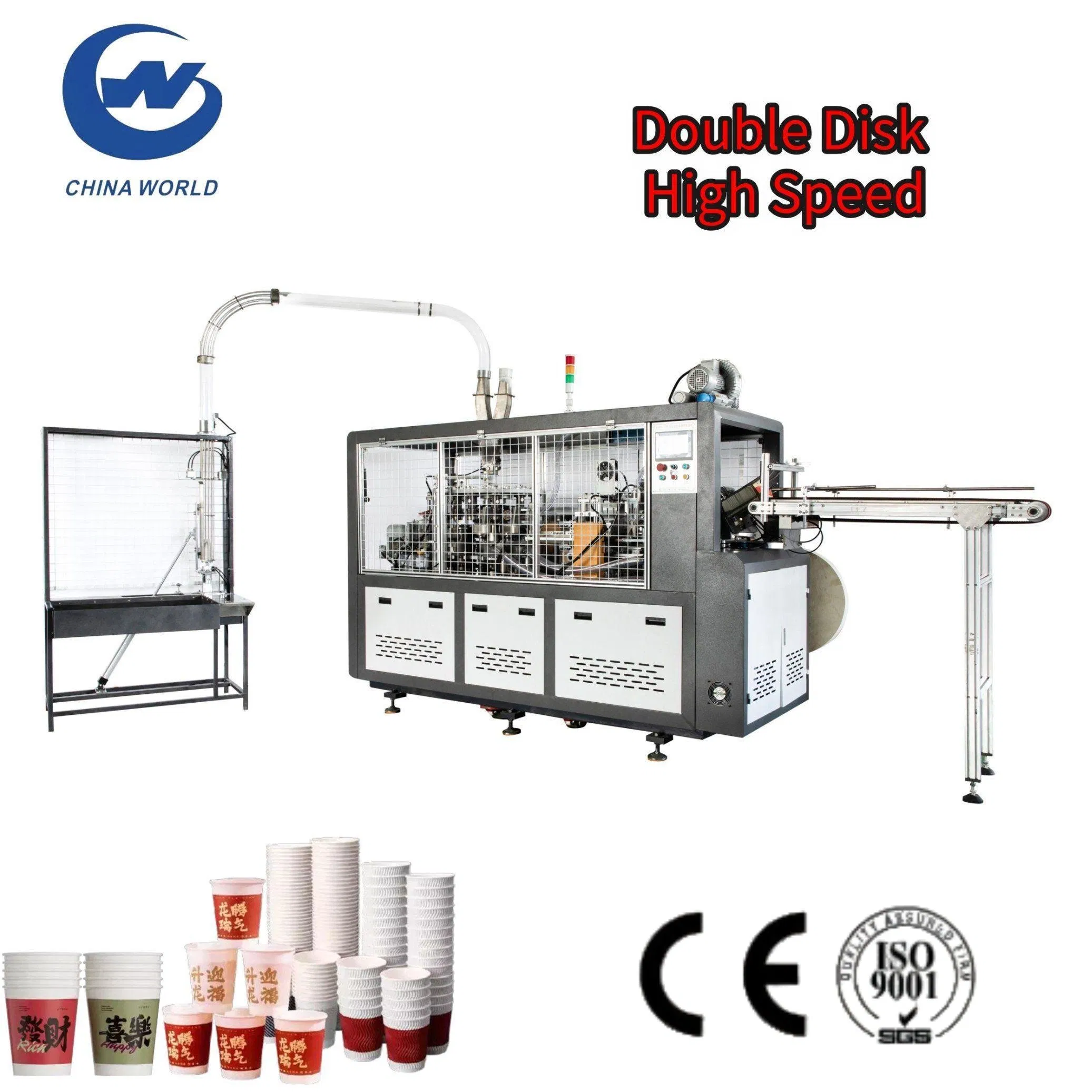

CW-16 HIGH SPEED PAPER CUP MAKING MACHINE

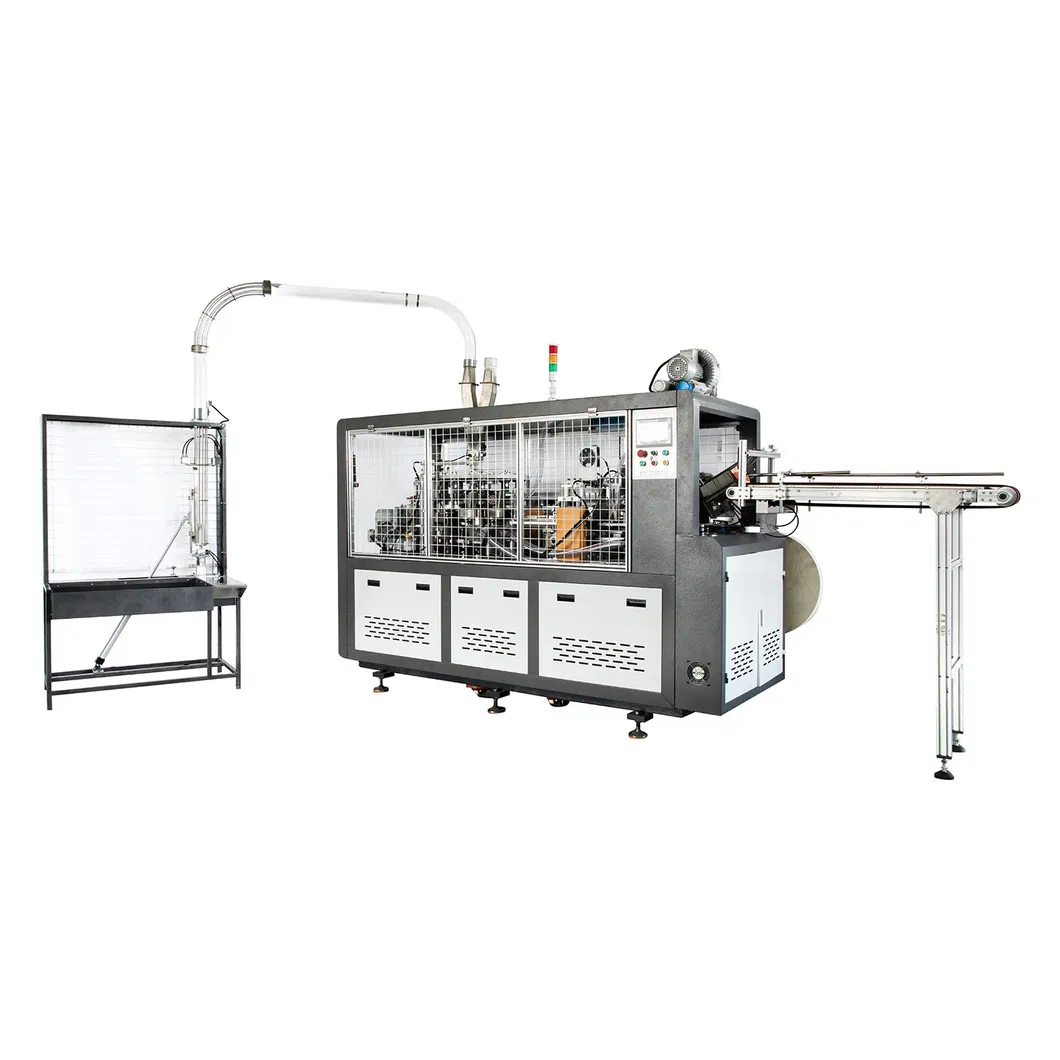

High Speed Paper Cup Machine
⚙️

Basic Information

Model NO.
CW-16
Cup Size
4-16oz
Speed
130-150 PCS/Min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Certification
CE
Paper Thickness
150-350 GSM
Voltage
380V 50Hz
Power
18 Kw
Machine Weight
3300 Kgs
📝

Product Description

The CW-16 high-speed paper cup machine is a multi-station paper cup forming machine, which is currently the mainstream machine on the market. The roll mouth and rolling bottom adopt a dual disc separation process, and the roll mouth adopts two processes to form, making the cup mouth more round. Especially for thick paper, a single disc machine cannot achieve a smooth and even roll mouth. This model does not have this problem. The whole machine adopts frequency conversion speed regulation, automatic oil injection, servo bottom feeding, ultrasonic welding, and high production speed, up to 150 per minute. This machine belongs to the mid to high end model.

📊

Product Parameters

Parameter Details
ModelCW-16
Paper Thickness150-350gsm
Raw materialSingle/ Double PE coated paper
Top diameter60-95mm
Height50-135mm
Bottom diameter40-80mm
Bottom depth5-12mm
Machine speed130-150 pcs/min
Air Source specification0.5-0.8MPa, 0.5 cubic/min
Power18 KW
Machine Size2700*1300*1900mm
🧩

Main Components

Part Name Brand
PLCInovance
Touch screen7 inches
UltrasonicWenzhou Changrong
Air switch / AC contactorSchneider
Intermediate relayInovance
Photoelectric switchOmron Optoelectronics
Main motorPurple light motor
PneumaticYadek
📸

Detailed Photos

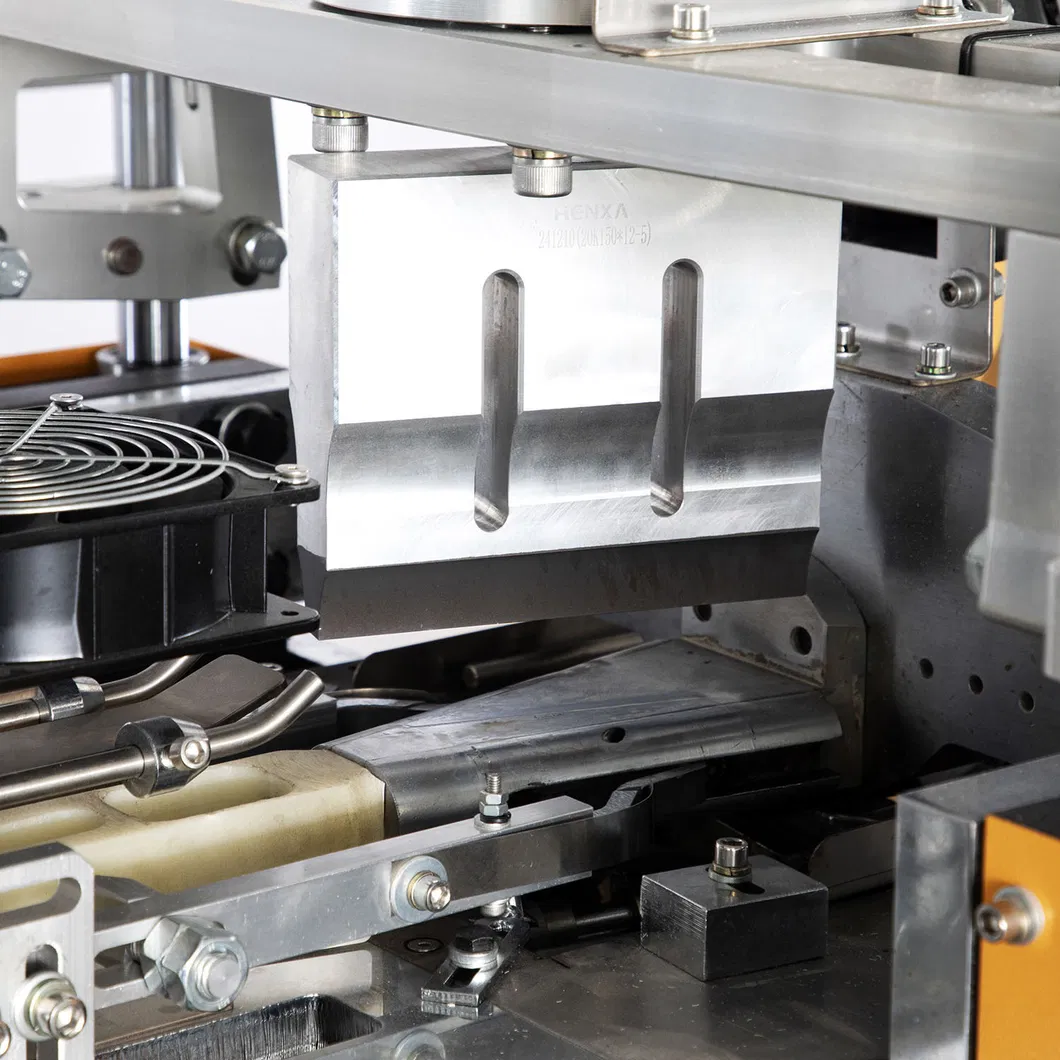

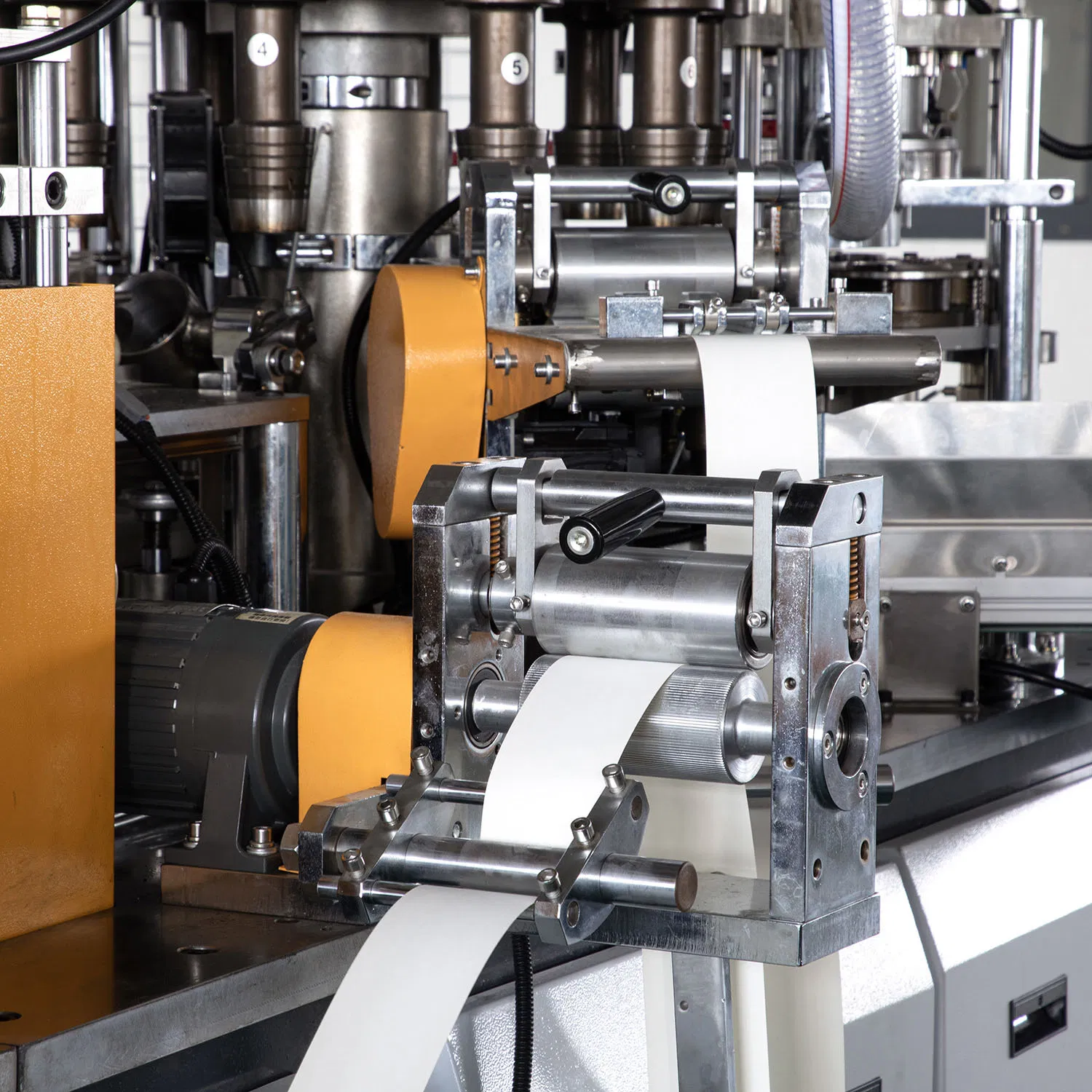

Detail Photo 1

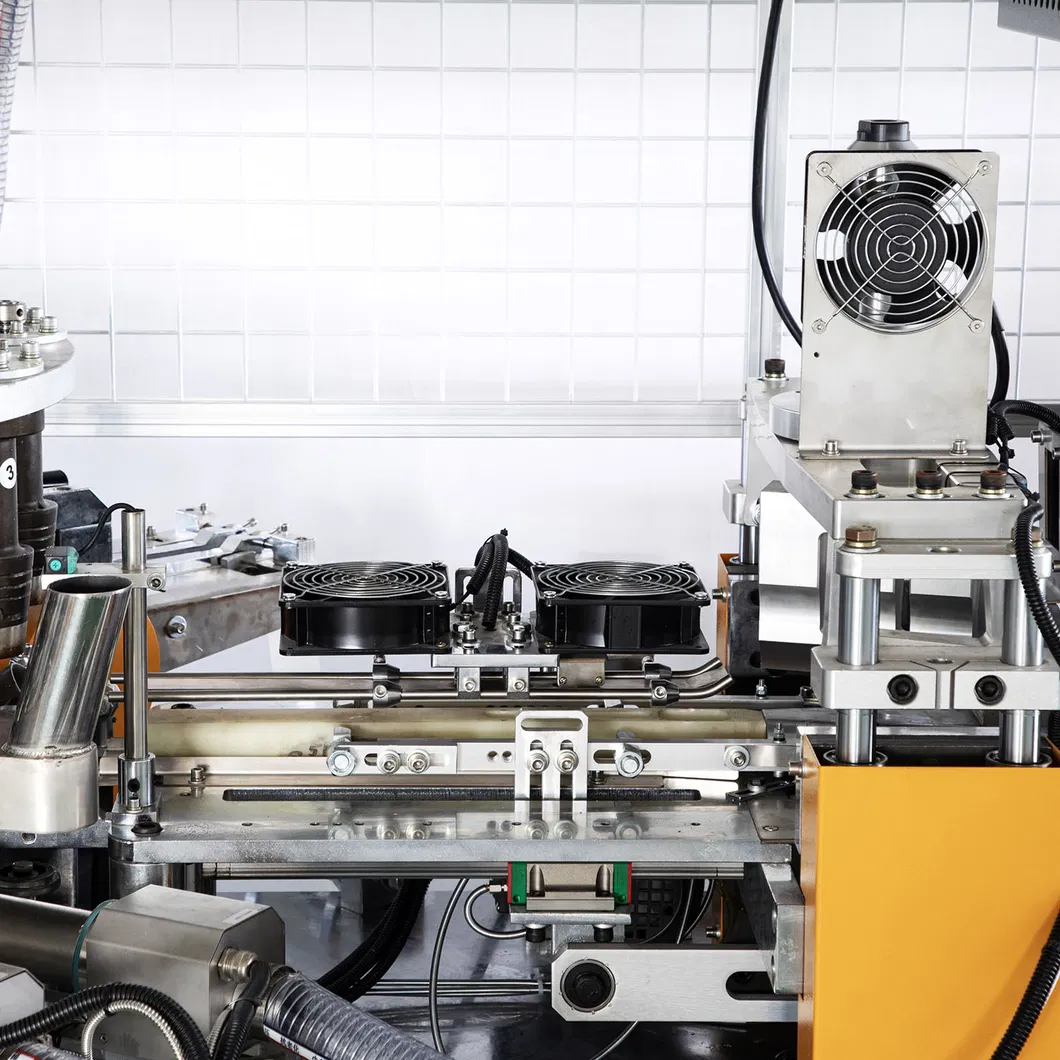

Detail Photo 2

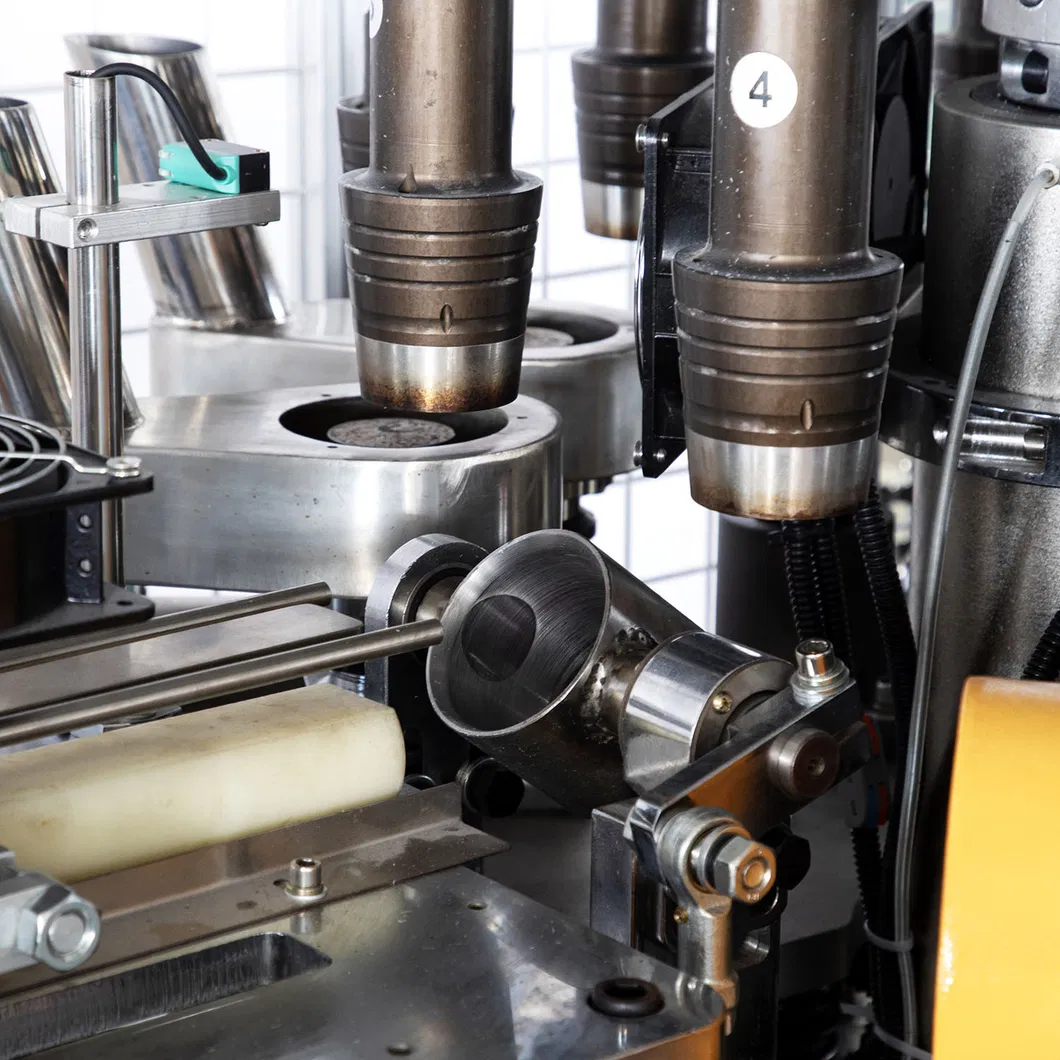

Detail Photo 3

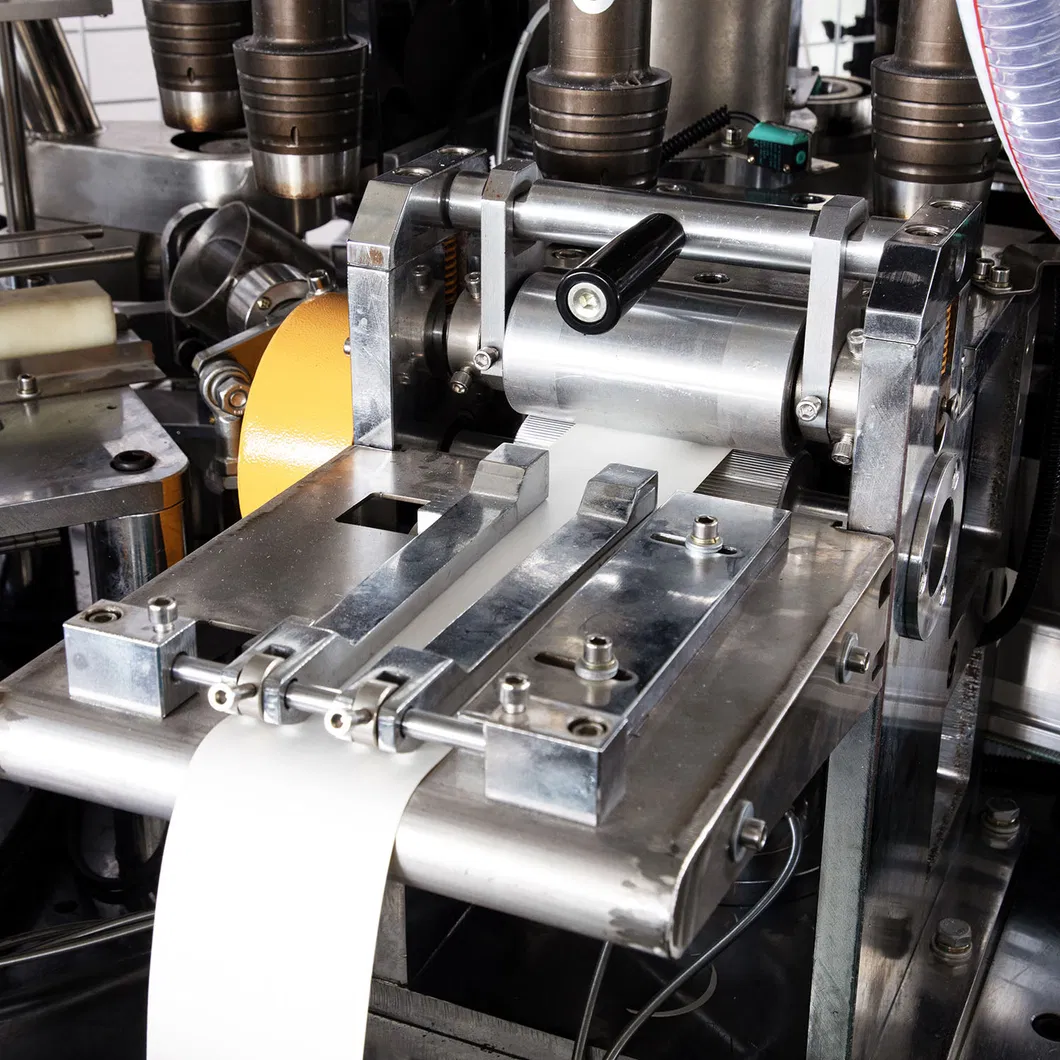

Detail Photo 4

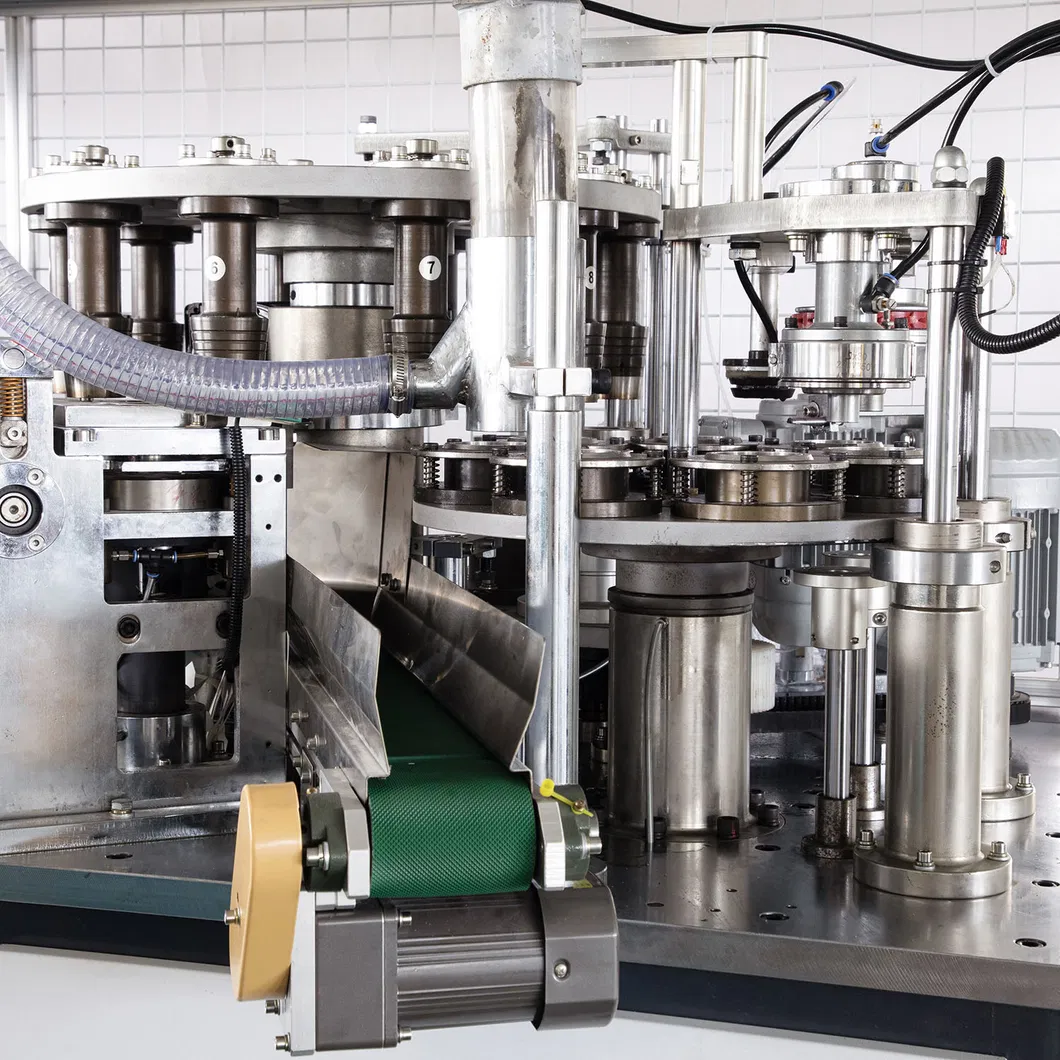

Detail Photo 5

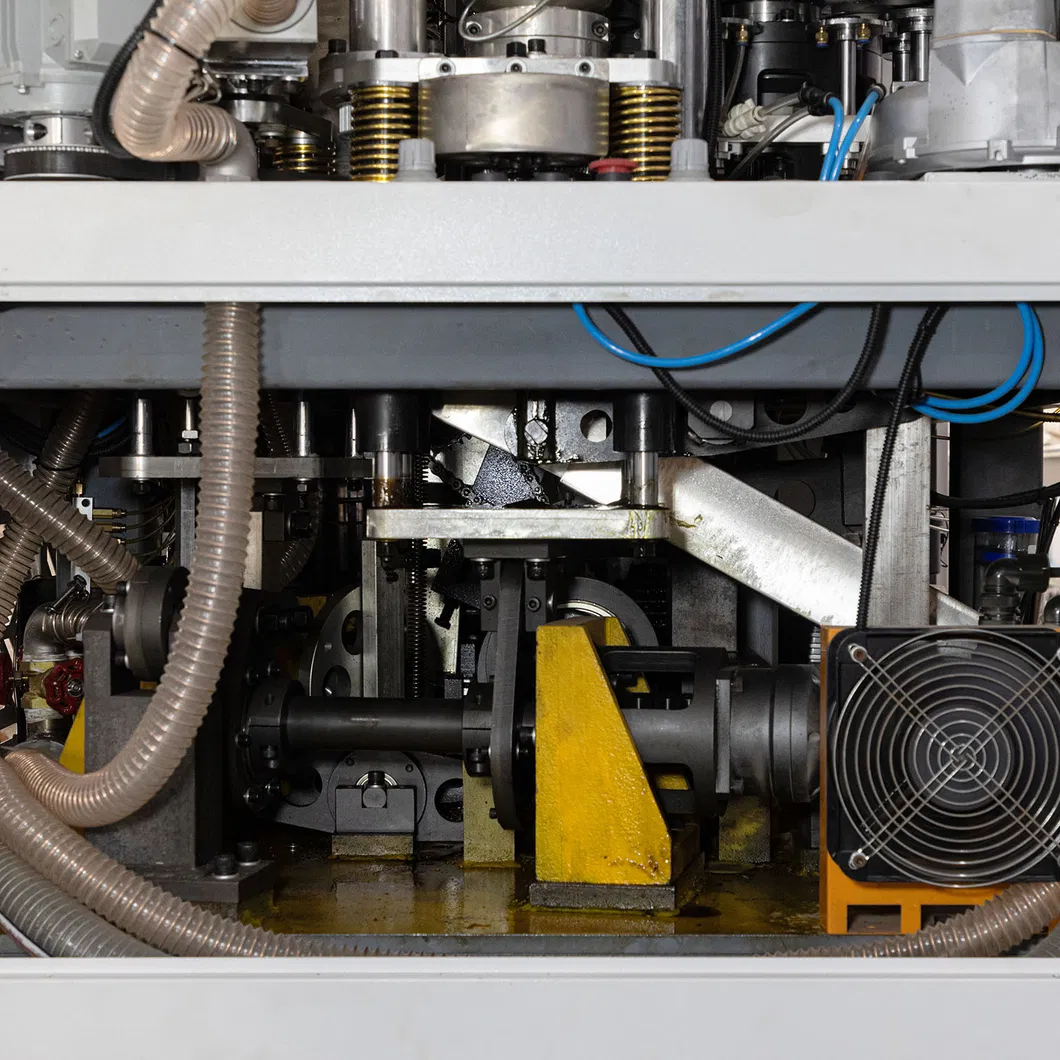

Detail Photo 6

Frequently Asked Questions

Q1: What is the maximum production speed of the CW-16 machine?
The CW-16 is a high-speed machine capable of producing between 130 to 150 paper cups per minute, depending on the material and size.
Q2: What range of paper cup sizes can this machine handle?
The machine is versatile and can manufacture cups ranging from 4oz to 16oz, with adjustable top diameters between 60-95mm.
Q3: Is the machine compatible with double-sided PE coated paper?
Yes, the CW-16 is designed to work efficiently with both single and double-sided PE coated paper.
Q4: How does the machine ensure a smooth cup rim?
It utilizes a dual disc separation process and a two-step rolling process for the mouth, ensuring even and round rims even for thicker paper stocks (up to 350 GSM).
Q5: What are the main electrical components used?
The machine features premium components including an Inovance PLC, Schneider air switches/contactors, and Omron photoelectric switches for high reliability.
Q6: What are the packaging dimensions for shipping?
The shipping dimensions are approximately 2700cm x 1300cm x 1900cm with a gross weight of about 3500kg, typically shipped in a secure wooden package.
