Basic Specifications
Automatic Grade
Automatic
Application
Drinks, Rice, Flour, Seasoning, Packing Machine
Type
Forming Filling Sealing Machine
Material Type
Grain / Ground Coffee
Sealing Method
Ultrasonic Sealing
Dimension
1200*900*1900mm
Our Commitment
🔬
Free Machine Testing
🎓
Free Technical Training
🛡️
One Year Warranty
🛠️
Onsite Service Support

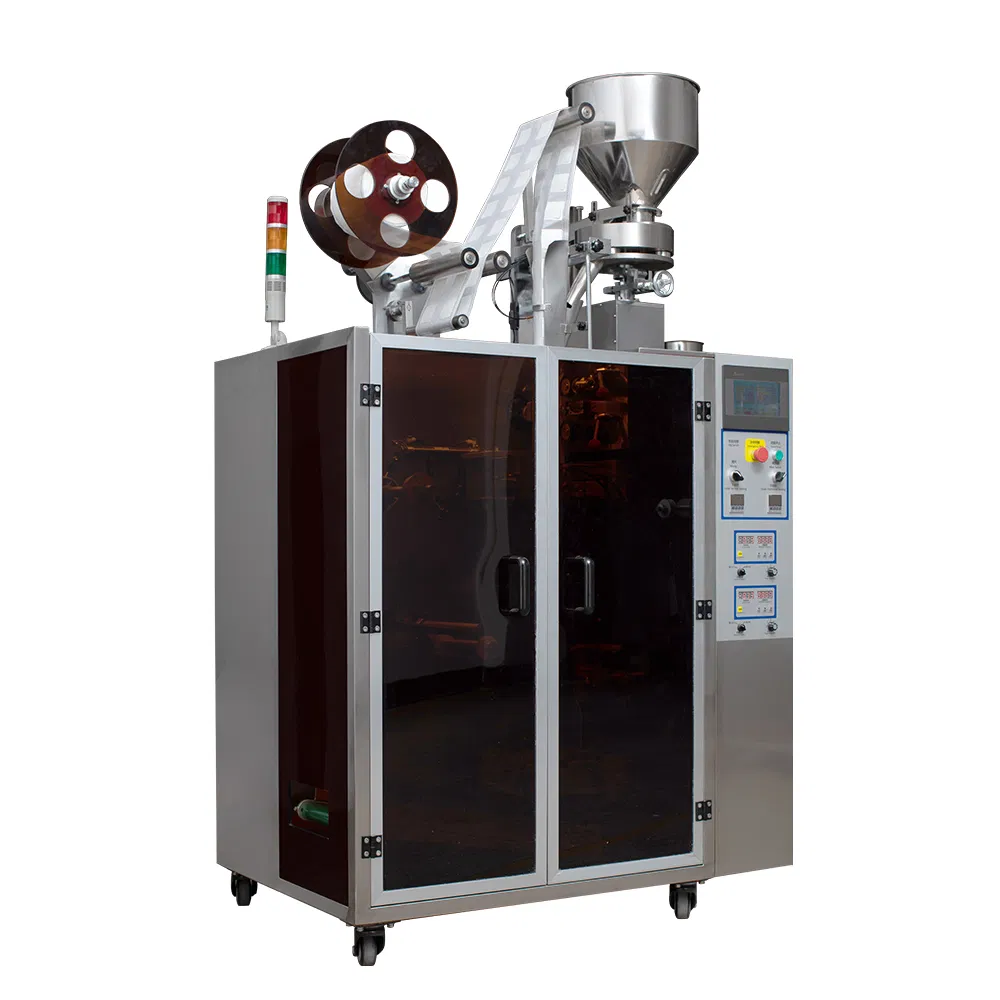

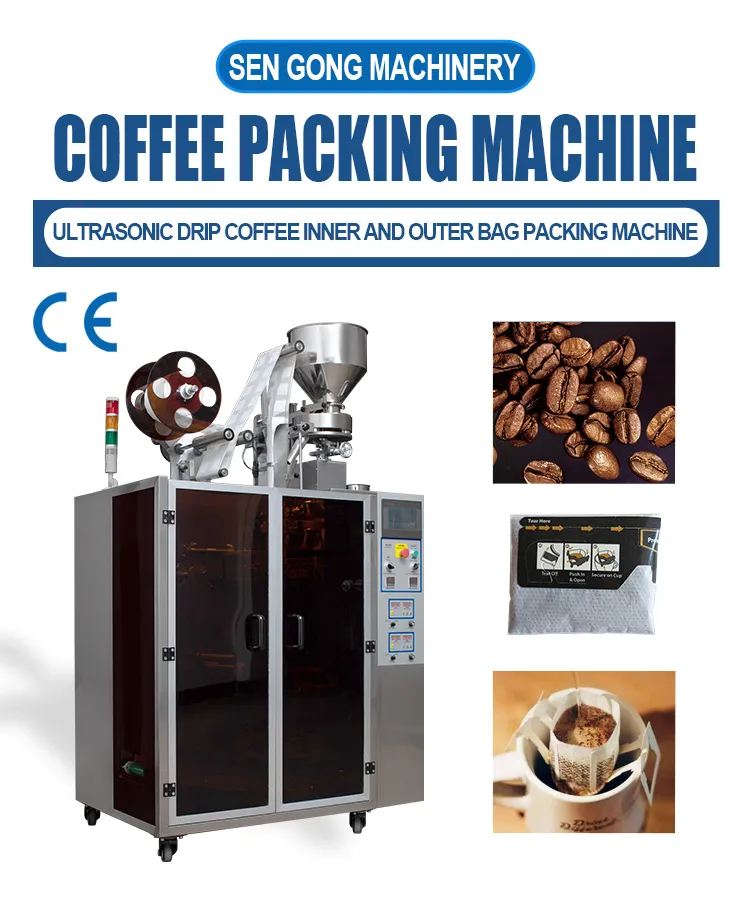

C19H Ultrasonic Drip Coffee Packing Machine
The C19H is a specialized automatic packaging solution designed for 5 to 15-gram drip coffee bags, featuring both inner and outer bag packaging capabilities. Utilizing ultrasonic sealing technology, it ensures a clean, tight, and reliable seal for premium coffee products.
Key Features & Advantages
- Precision Control: Outer bag sealing is managed by a stepper motor for accurate and stable bag length positioning.
- PID Temperature Regulation: Adopts advanced PID controllers for highly accurate temperature adjustments.
- User-Friendly Interface: Equipped with a PLC control system and a color touch screen monitor for easy operation.
- Hygienic Construction: All main machine parts are fabricated from SUS304 stainless steel, ensuring food-grade output.
- High-Performance Components: Utilizes imported cylinders to maintain accuracy and operational stability.
- Efficiency: Automatically produces both inner and outer bags simultaneously, significantly boosting production throughput.
- Nitrogen Compatibility: Features a reserved connector for nitrogen flushing machines to extend product shelf life.
- Conveyor System: Integrated automatic conveyor system for seamless workflow.
Technical Parameters
| Product Name |
Automatic Ultrasonic Drip Coffee Bag Packing Machine |
| Bag Type |
Ultrasonic 3-Side Sealing |
| Packing Material |
Paper/Plastic, Plastic/Alu/Plastic, Filter Paper |
| Inner Bag Size |
L: 50-75mm, W: 50-90mm |
| Outer Bag Size |
L: 85-120mm, W: 75-100mm |
| Packing Speed |
30-60 bags/min |
| Filling Range |
5-15g |
| Power Supply |
220V, 50HZ, 3.7KW (Single Phase) |
| Machine Weight |
600KG |

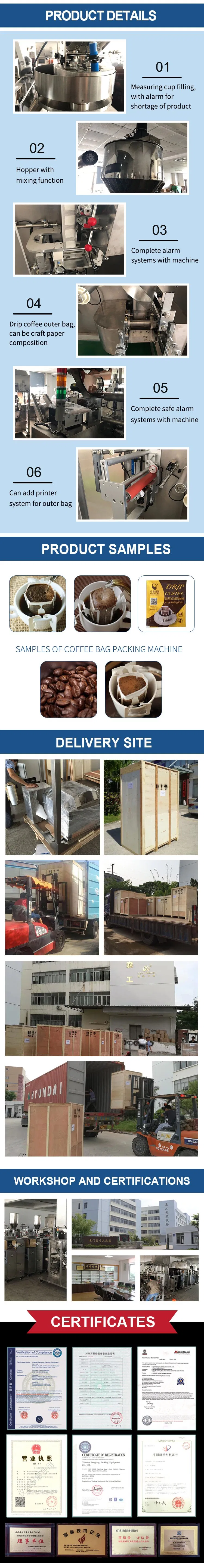

Product Visuals
Frequently Asked Questions
What materials can this machine pack?
It is designed for ground coffee and can handle various film types including Paper/Plastic, Plastic/Aluminum/Plastic, and specialized drip coffee filter paper.
Does the machine support nitrogen flushing?
Yes, the machine includes a reserved connector specifically to link with nitrogen making machines, allowing you to flush nitrogen into the bags to extend coffee shelf life.
How is the packing speed and weight range?
The C19H offers a packing speed of 30 to 60 bags per minute with a filling range of 5 to 15 grams per bag.
What is the lead time for production?
Standard production time is typically 15-20 days after payment confirmation. Customization requirements may extend this period.
Is the sealing method reliable for coffee freshness?
Absolutely. It utilizes ultrasonic sealing for the inner bag and a PID-controlled thermal seal for the outer bag, ensuring a high-quality airtight finish.
What kind of after-sales support is provided?
We offer a one-year warranty, free technical training, and onsite service support to ensure your production line runs smoothly.
